NDS 8" Pro Series Pedestrian Traffic Channel Grate

$65.28

In stock

SKU

836

For personalized assistance or a customized quote, be sure to call us directly at (803)-324-3225. Our team of experts is on standby to assist you with any questions you may have about our products.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

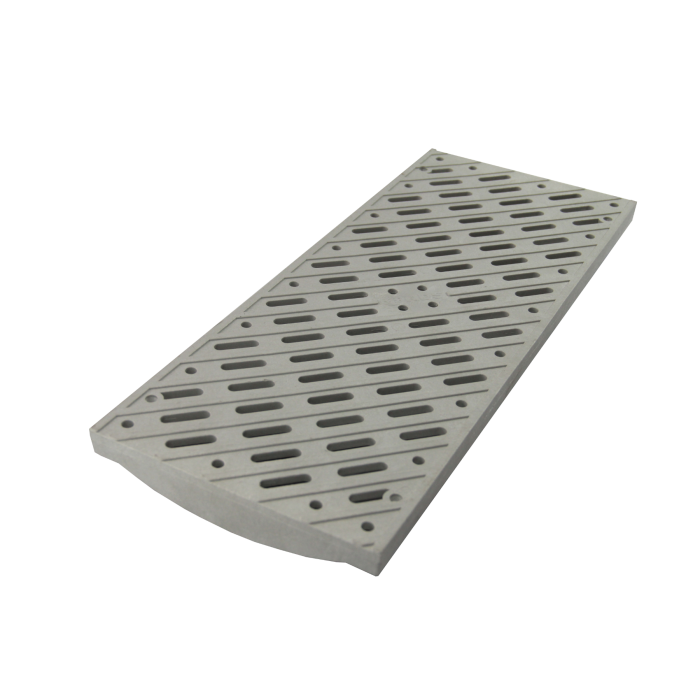

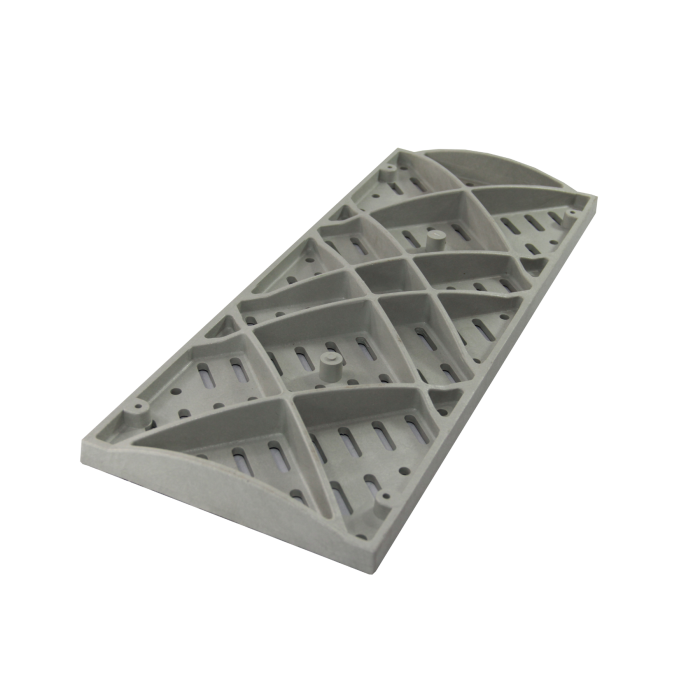

Product Details: NDS 8" Pro Series Pedestrian Traffic Channel Grate

The NDS 8" Pro Series Pedestrian Traffic Channel Grate is the ideal solution for all your drainage needs. The NDS 8" pro series drainage system has been engineered to provide excellent performance in a wide range of applications, including driveways, courtyards, plazas, pool decks, parking lots, sports facilities, and more. The system is compatible with sewer pipes, drain pipes, and Schedule 40 pipes, and outlets can be attached anywhere along the channels. With its advanced design and user-friendly features, the NDS 8" Pro Series Pedestrian Traffic Channel Grate is the perfect solution for all your drainage needs.

Key Insights

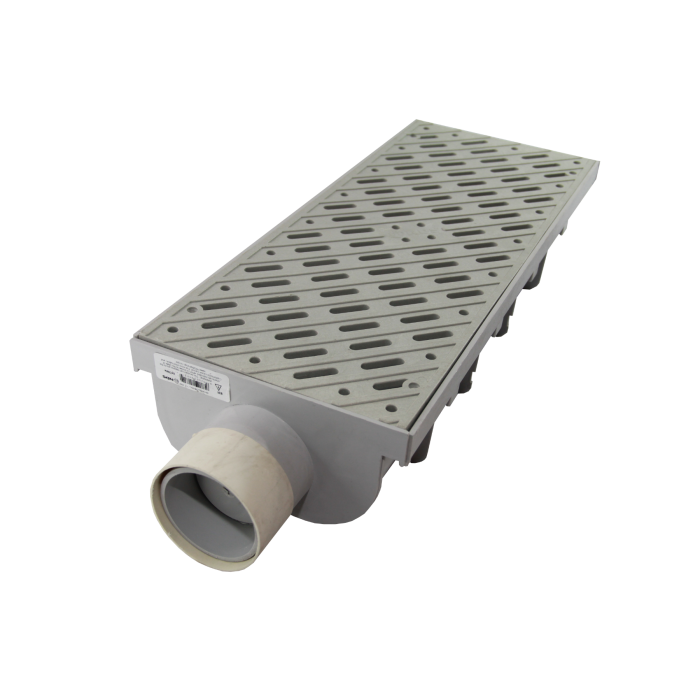

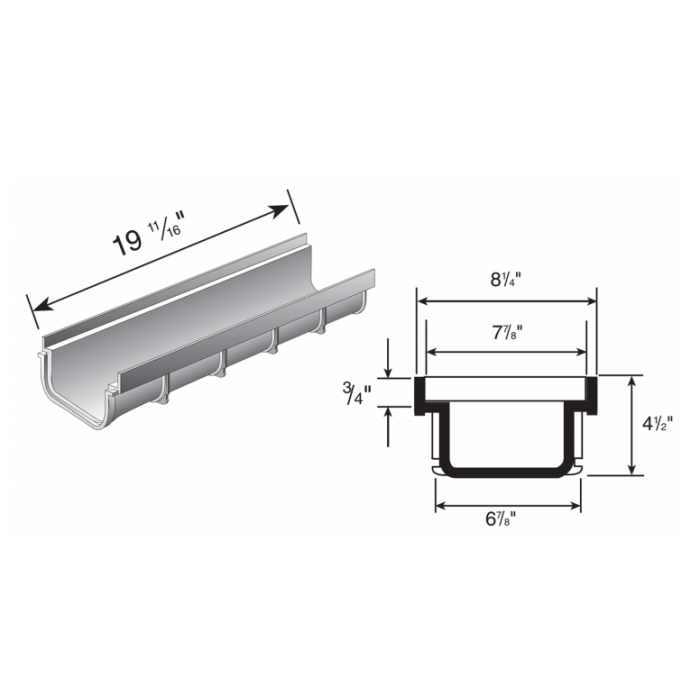

Use With NDS 8" Pro Series Products
Material: High Density Polyethylene

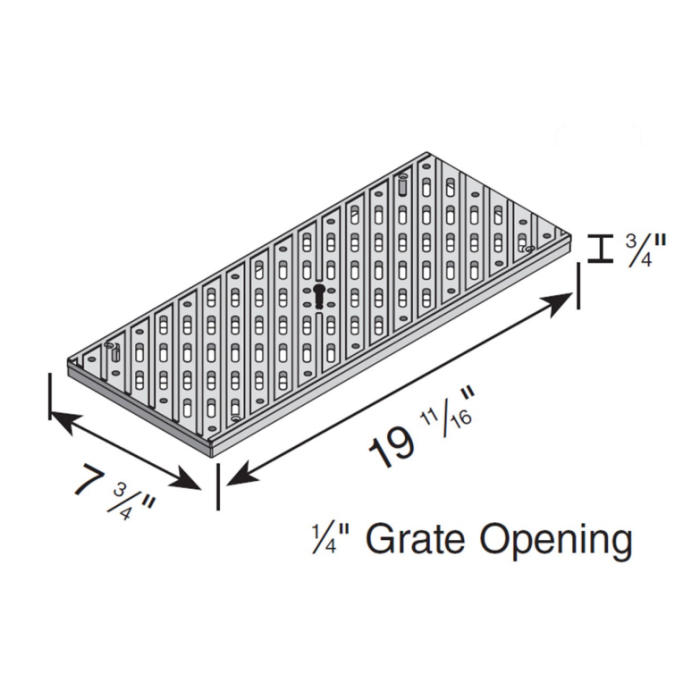

Dimensions: 19-11/16" LENGTH x 7-3/4" WIDTH x 3/4" HEIGHT
Channel grates can be easily cut to any length
ADA Compliant
Channel Grates can be screwed to the channel using Stainless Steel Screws, Phillips Head #8 x 1” screws (4 per channel grate, screws sold separately)
Open Surface Area: 13.82 Sq. Inches Per Foot
Grate Opening: 1/4”
Load Recommendation: Class A (00-65 PSI / 3,372 lbs per foot)
