NDS 8" Pro Series Deep Profile Drain

$54.66
In stock
SKU
833

For personalized assistance or a customized quote, be sure to call us directly at (803)-324-3225. Our team of experts is on standby to assist you with any questions you may have about our products.

Product Details: NDS 8" Pro Series Deep Profile Drain

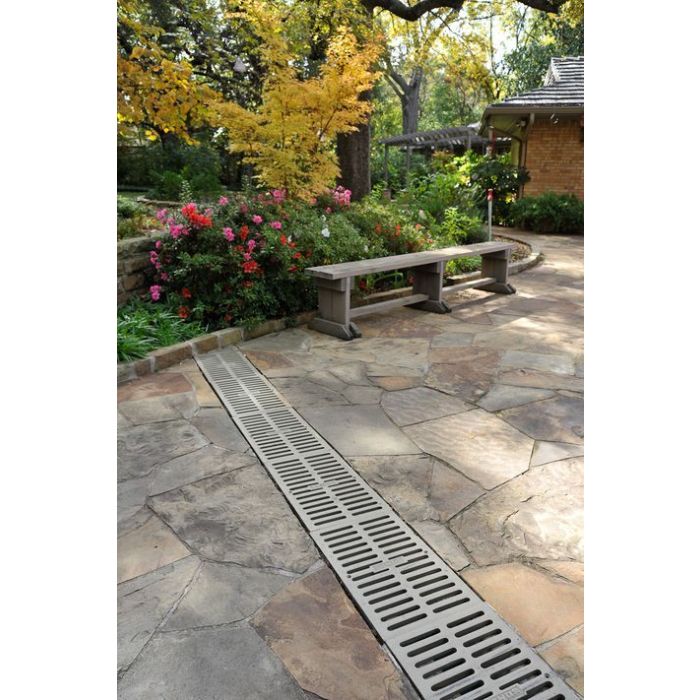

The NDS 8" Pro Series Deep Profile Drain is the ideal solution for all your drainage needs. The NDS 8" pro series drainage system has been engineered to provide excellent performance in a wide range of applications, including driveways, courtyards, plazas, pool decks, parking lots, sports facilities, and more. The system is compatible with sewer pipes, drain pipes, and Schedule 40 pipes, and outlets can be attached anywhere along the channels. With its advanced design and user-friendly features, the NDS 8" Pro Series Deep Profile Drain is the perfect solution for all your drainage needs.

Key Insights

  • Use With NDS 8" Pro Series Products
  • Material: High Impact Glass Reinforced Nylon
  • NDS 8" Pro Series Deep Profile Channel drains will hold about the same volume of water as an 8” diameter pipe
  • PVC glue can be used to bond all components together in a product series
  • Channel Drain can be created to any length or cut to as short as 4" for interlocking sections

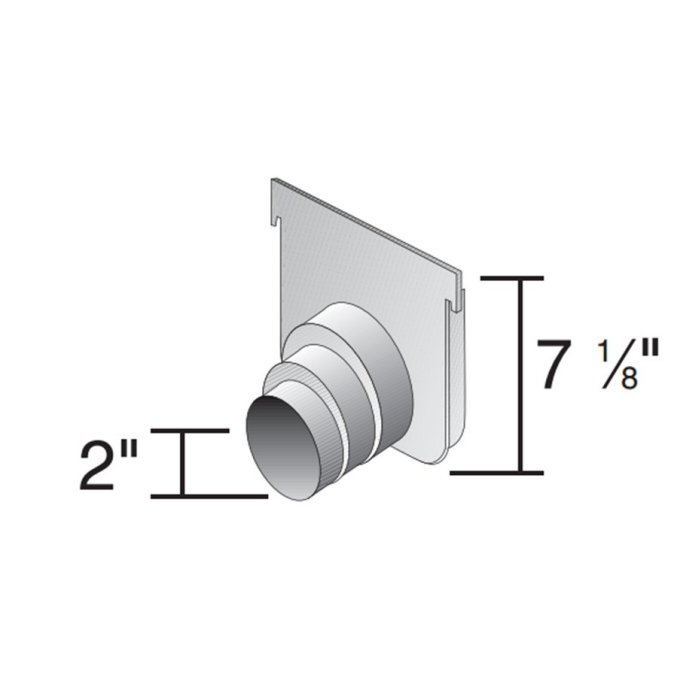

  • End caps that feature a sewer and storm spout of either 3" or 4" are available for purchase
  • Recommended to leave a 1/8" gap between grates during installation to accommodate for the expansion of the grates.
  • Sections of the NDS 8" Pro Series Channel can be joined together using interlocking end joints

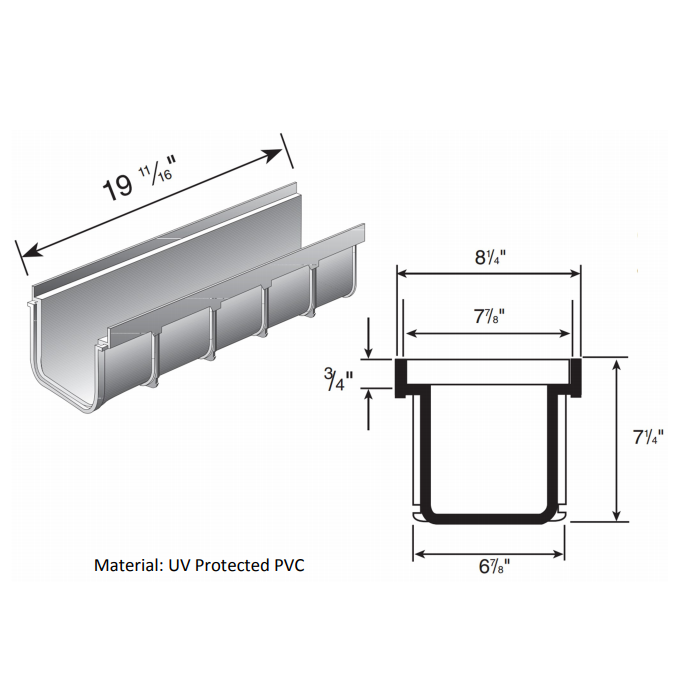

  • Dimensions: 19-11/16" LENGTH x 8-1/4" WIDTH x 7-1/4" HEIGHT
  • ADA Compliant
  • Channel Grates can be screwed to the channel using Stainless Steel Screws, Phillips Head #8 x 1” screws (4 per channel grate, screws sold separately)
  • Load Recommendation: Varies on grate selection

Shop our entire line of NDS 8" Pro Series Drainage Products

Additional Information

NDS 8" Pro Series Deep Profile Channel Drain Technical Specifications
NDS 8" Pro Series Shallow Profile Channel Grate Technical Specifications
NDS 8" Pro Series Deep Profile End Cap/End Outlet Technical Specifications
NDS 8" Pro Series Shallow Profile Side Outlet Technical Specifications
NDS 8" Pro Series Channel Drain Shallow Profile End Cap / 3" S&D SPT Knockout End Outlet Technical Specifications
NDS 8" Pro Series Channel Grate - Pedestrian Traffic Technical Specifications
NDS 8" Pro Series Channel Grate Technical Specifications
NDS Heavy Traffic 8" Pro Series Channel Grate Technical Specifications
NDS 8" Pro Series Channel Grate - Ductile Iron Technical Specifications
NDS Channel Grates Flow Capacities Table
Principles Of Exterior NDS Drainage
How Do I Choose The Right Channel Drain For My Drainage System? Video

Product Installation Instructions

NDS Channel Drain Installation Guide

Technical Product Drawings (DWG)

NDS 8" Pro Series Plumbing Connection to 3-inch End Outlet Installation Details
