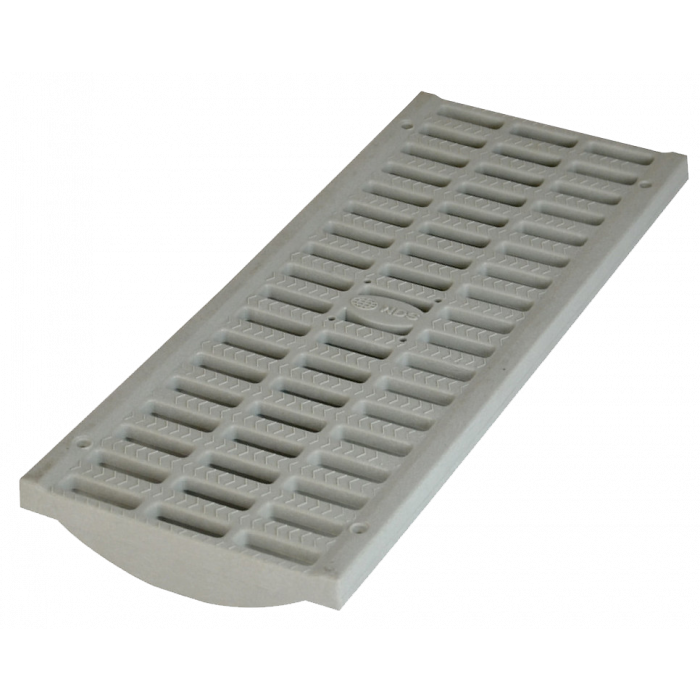

NDS 8" Pro Series Channel Grate

$66.67
In stock
SKU
837

For personalized assistance or a customized quote, be sure to call us directly at (803)-324-3225. Our team of experts is on standby to assist you with any questions you may have about our products.

Product Details: NDS 8" Pro Series Channel Grate

The NDS 8" Pro Series Channel Grate is the ideal solution for all your drainage needs. The NDS 8" pro series drainage system has been engineered to provide excellent performance in a wide range of applications, including driveways, courtyards, plazas, pool decks, parking lots, sports facilities, and more. The system is compatible with sewer pipes, drain pipes, and Schedule 40 pipes, and outlets can be attached anywhere along the channels. With its advanced design and user-friendly features, the NDS 8" Pro Series Grate is the perfect solution for all your drainage needs.

Key Insights

  • Use With NDS 8" Pro Series Products
  • All accessories are sold separately
  • NDS 8" Pro Series grates material include: Plastic & Iron

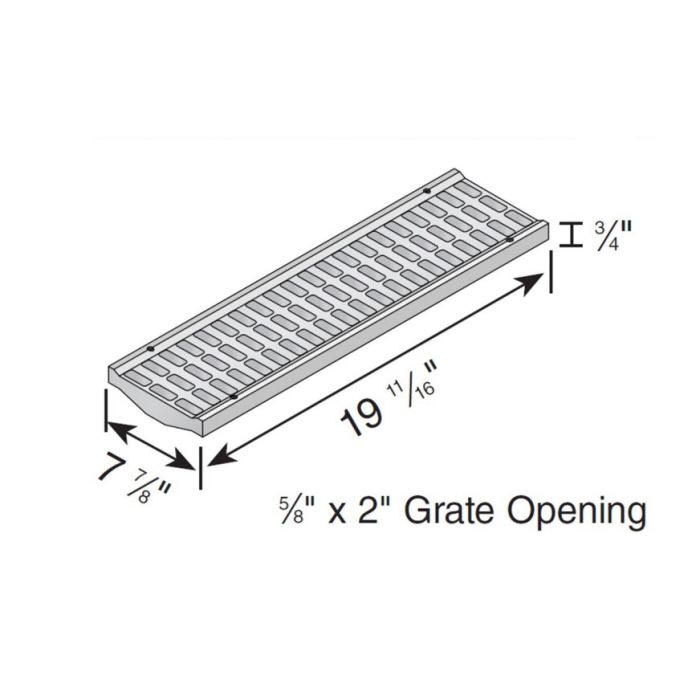

  • Dimensions: 19-11/16" LENGTH x 7-7/8" WIDTH x 3/4" HEIGHT
  • Channel grates can be easily cut to any length
  • ADA Compliant
  • Channel Grates can be screwed to the channel using Stainless Steel Screws, Phillips Head #8 x 1” screws (4 per channel grate, screws sold separately)
  • Open Surface Area: 30.28 Sq. Inches Per Foot
  • Grate Opening: 5/8” x 2”
  • Load Recommendation: Class B (61-175 PSI / 28,100 lbs per foot)
  • Material: UV Protected High-Density Polyethylene (HDPE)

Shop our entire line of NDS 8" Pro Series Drainage Products
