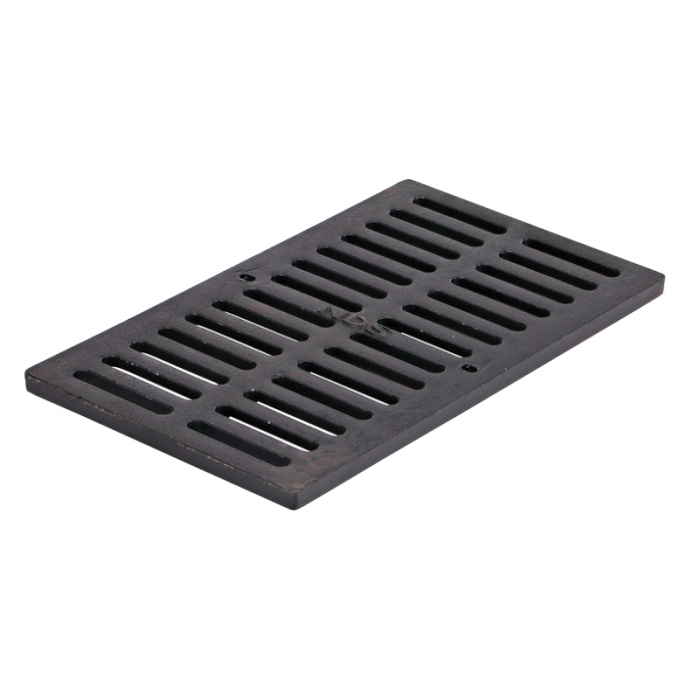

NDS 12" Pro Series Ductile Iron Channel Grate
For personalized assistance or a customized quote, be sure to call us directly at (803)-324-3225. Our team of experts is on standby to assist you with any questions you may have about our products.
Product Details: NDS 12" Pro Series Ductile Iron Channel Grate
The NDS 12" Pro Series Ductile Iron Channel Grate is the ideal solution for all your drainage needs. The NDS 12" pro series drainage system has been engineered to provide excellent performance in a wide range of applications, including driveways, courtyards, plazas, pool decks, parking lots, sports facilities, and more. The system is compatible with sewer pipes, drain pipes, and Schedule 40 pipes, and outlets can be attached anywhere along the channels. With its advanced design and user-friendly features, the NNDS 12" Pro Series Ductile Iron Channel Grate is the perfect solution for all your drainage needs.
Key Insights
- Use With NDS 12" Pro Series Products
- Material: Ductile Iron
- All accessories are sold separately
- NDS 12" Pro Series grates material include: Plastic & Iron

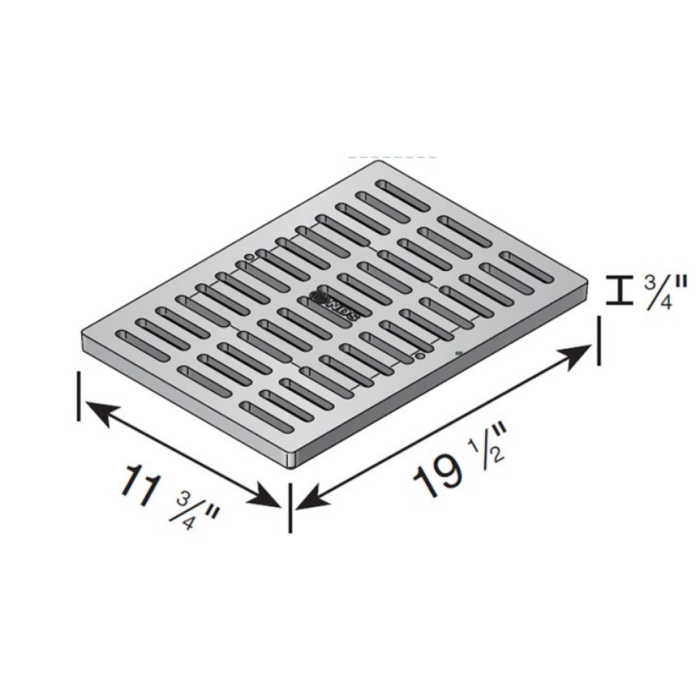

- Dimensions: 19-5/8" LENGTH x 11-11/16" WIDTH x 3/4" HEIGHT
- Open Surface Area: 68.64 Sq. Inches Per Foot.
- ADA Compliant
- Load Recommendation: Class C (176-325 PSI / 56,200 lbs per foot)
- H-20 Rated
Shop our entire line of NDS 12" Pro Series Drainage Products
Additional Information

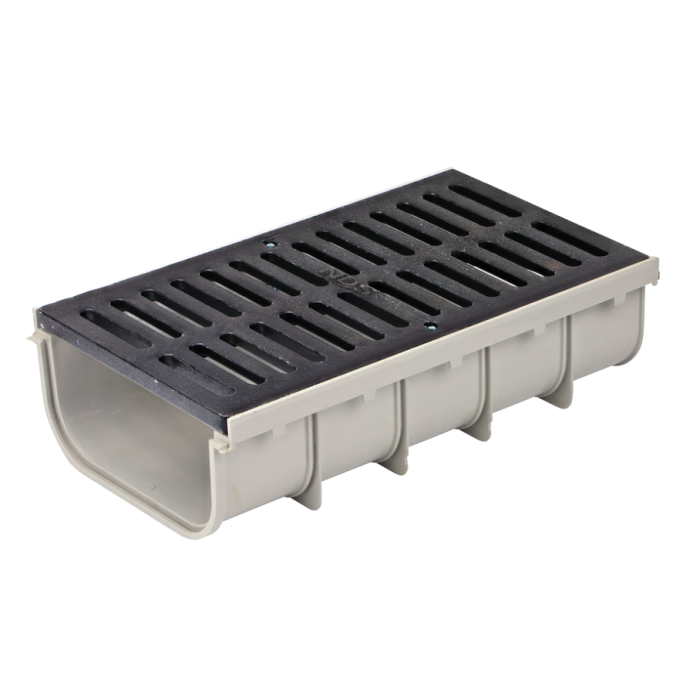

NDS 12" Pro Series Shallow Profile Channel Drain Technical SpecificationsNDS 12" Pro Accessories Technical Specifications

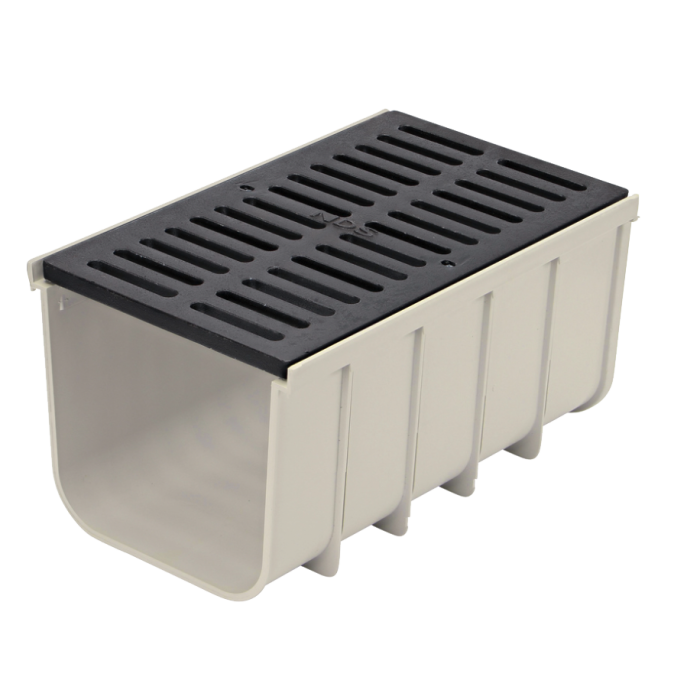

NDS 12" Pro Series Deep Profile Channel Drain Technical Specifications
