NDS Spee-D Botanical Channel Grate - Gray
For personalized assistance or a customized quote, be sure to call us directly at (803)-324-3225. Our team of experts is on standby to assist you with any questions you may have about our products.

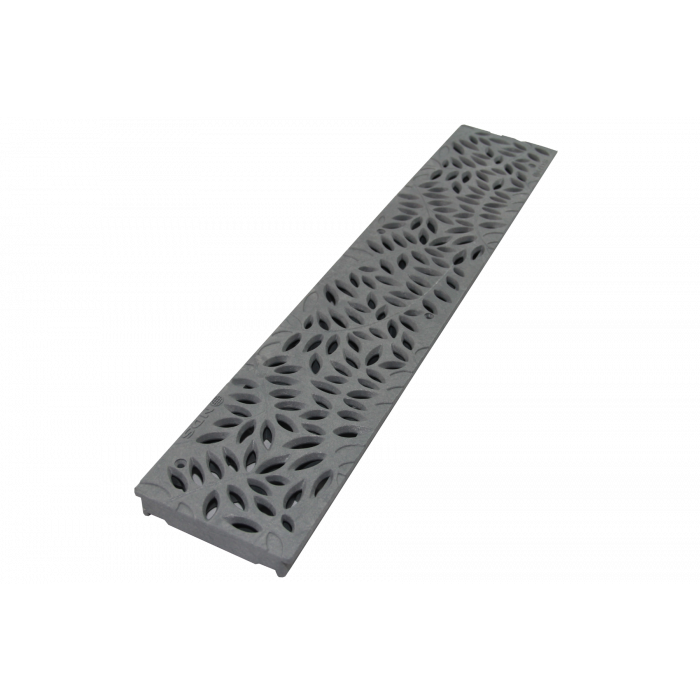

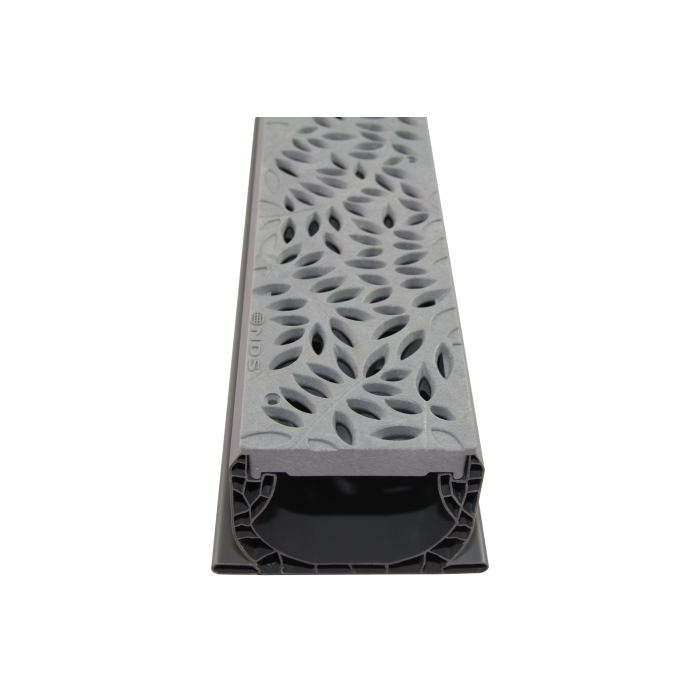

Product Details: NDS Spee-D Botanical Channel Grate
The NDS Spee-D Channel system is a lightweight, easy-to-install alternative to traditional concrete drainage channels. It features a larger surface area for drainage and is suitable for both residential and non-residential applications such as swimming pools, patios, and light vehicular traffic areas. The NDS Spee-D Botanical Channel Grate comes in four colors: Black (#252), Gray (#252GY), Green (#252GR), and Sand (#252S). With its versatility, it can handle a range of applications including patios and light vehicular traffic areas. Made from chemical-resistant and rustproof materials, the maintenance-free and lightweight grates are a breeze to install, making the Spee-D Channel Drain an efficient and effective solution for your drainage needs. Call in directly for a personalized quote today!
Quick Look
- Install with Four FH #8 x 1" screws, per grate (Sold Separately)
- ADA Compliant
- Colors: Black (#252), Gray (#252GY), Green (#252GR), Sand (#252S)
- Fits: NDS Spee-D Channel Drains #400 (4-Foot Section), #400-10 (10-Foot Section)
- Dimensions: 24" LENGTH x 4.420" WIDTH x 3/4" Height
- Will accommodate 47.60 gallons per minute 1/2" of head
- Load Recommendation: Class B (61-175 PSI / 28,100 lbs per foot)
- UV Inhibitors
- Material: UV Protected High-Density Polyethylene (HDPE)
