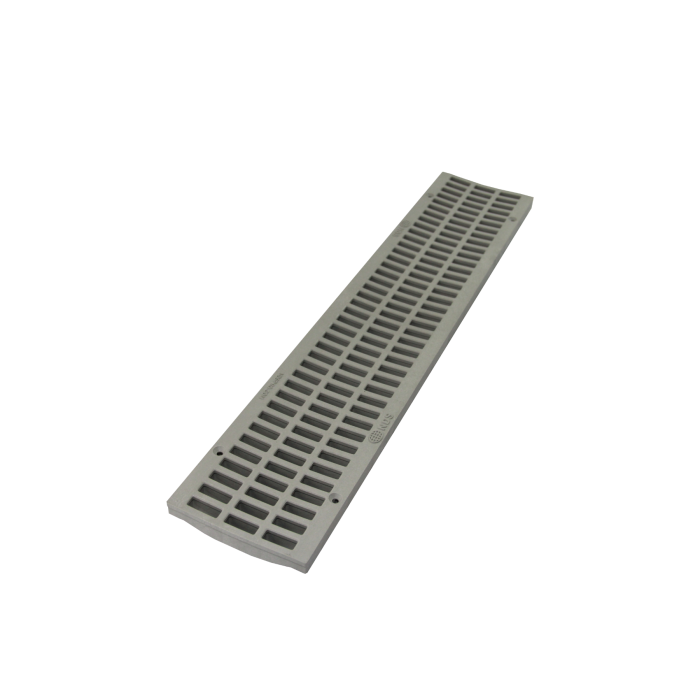

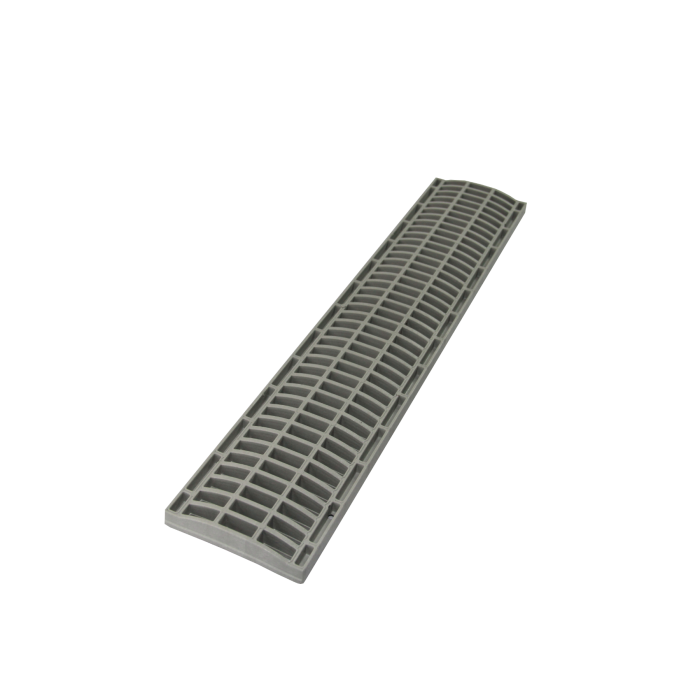

NDS 3" Pro Series Channel Grate

$10.85
In stock
SKU
714

For personalized assistance or a customized quote, be sure to call us directly at (803)-324-3225. Our team of experts is on standby to assist you with any questions you may have about our products.

Product Details: NDS 3" Pro Series Channel Grate

The NDS 3" Pro Series Channel Grate is the ideal solution for all your drainage needs. The 3" pro series drainage system has been engineered to provide excellent performance in a wide range of applications, including driveways, pool decks, sports facilities, and more. The drainage system is compatible with sewer pipes, drain pipes, and Schedule 40 pipes, and outlets can be attached anywhere along the channels. With its advanced design and user-friendly features, the NDS 3" Pro Series Channel Grates is the perfect solution for all your drainage needs.

Key Insights

  • Compliant with the Americans with Disabilities Act (ADA) standards
  • Material: HDPE (High-Density Polyethylene)
  • Dimensions: 19-11/15" LENGTH x 3-7/8" WIDTH x 1/2" HEIGHT
  • Channel Grates can be screwed to the channel using Stainless Steel Screws FH H 8x1” screws (4 per channel grate, screws sold separately)
  • Color: Light Gray
  • Fits: 3” Pro Series Channel, Part# 710 (Two Channel Grates Per Channel Drain)
  • Grate Opening: 5/16”X 7/8”
  • Channel grates can be reduced to any lengths
  • Recommended for medium-duty tire traffic
  • Open Surface Area: 23.63 Sq. Inches Per Foot
  • 102.23 GPM per foot
  • Load Recommendation: Class B (61-175 PSI / 28,100 lbs per foot)

Shop our entire line of NDS 3" Pro Series Drainage Products

Additional Information

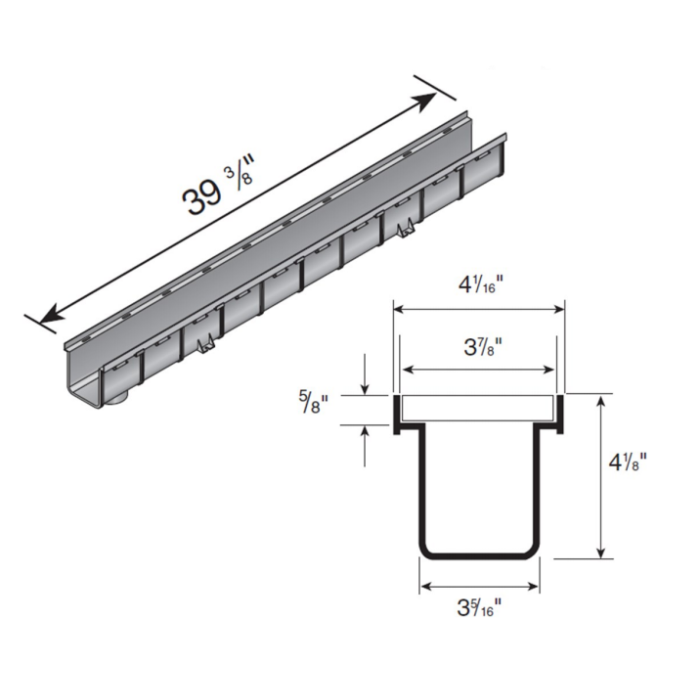

NDS 3" Pro Series Channel Drain Technical Specifications

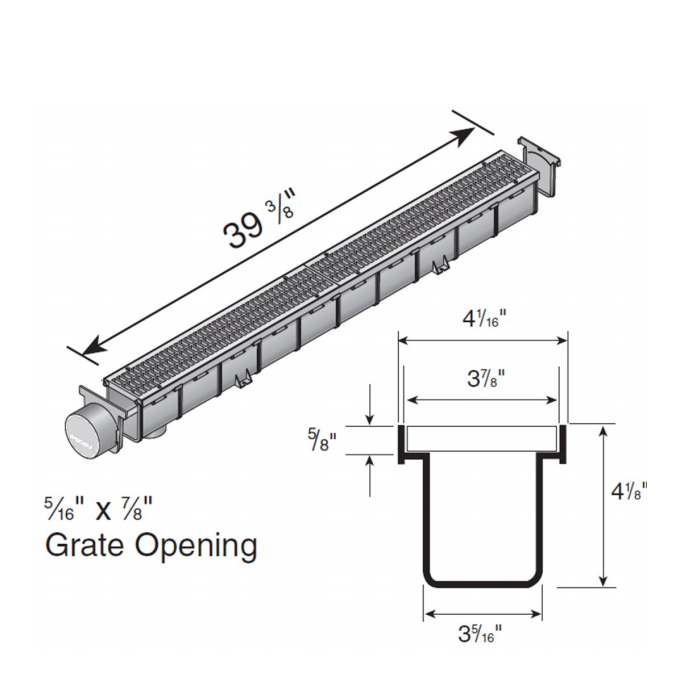

NDS 3" Pro Series Channel Drain Kit Technical Specifications

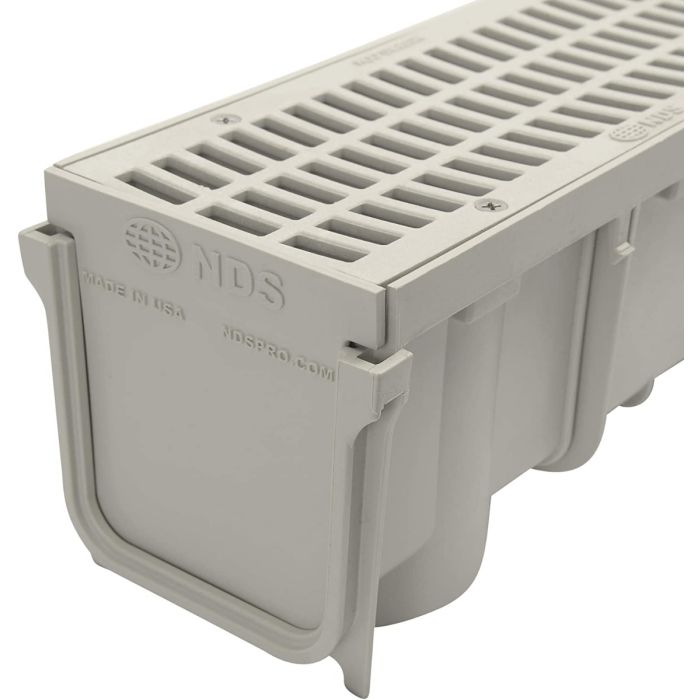

NDS 3" Pro Series Channel Drain End Cap / End Outlet Technical Specifications

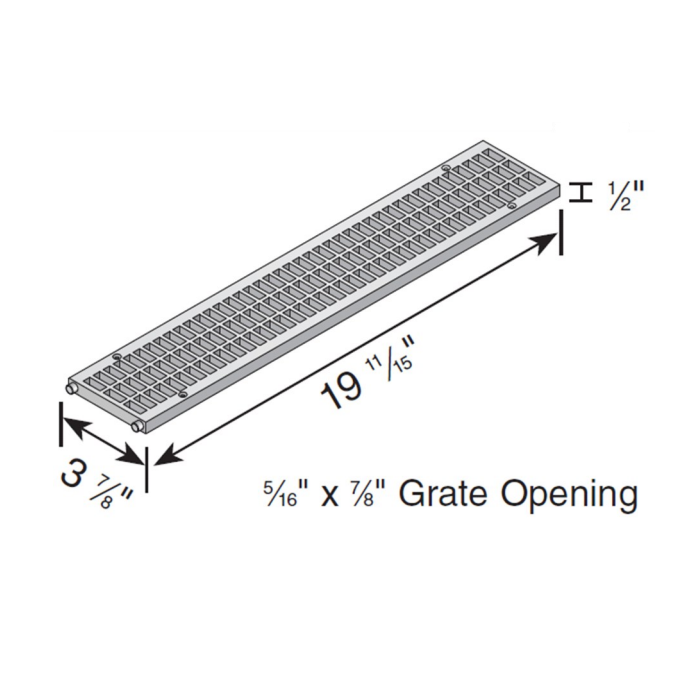

NDS 3" Pro Series Channel Drain Grate Technical Specifications
NDS Channel Grates Flow Capacities Table
Principles Of Exterior NDS Drainage
How Do I Choose The Right Channel Drain For My Drainage System? Video

Product Installation Instructions

NDS Channel Drain Installation Guide
