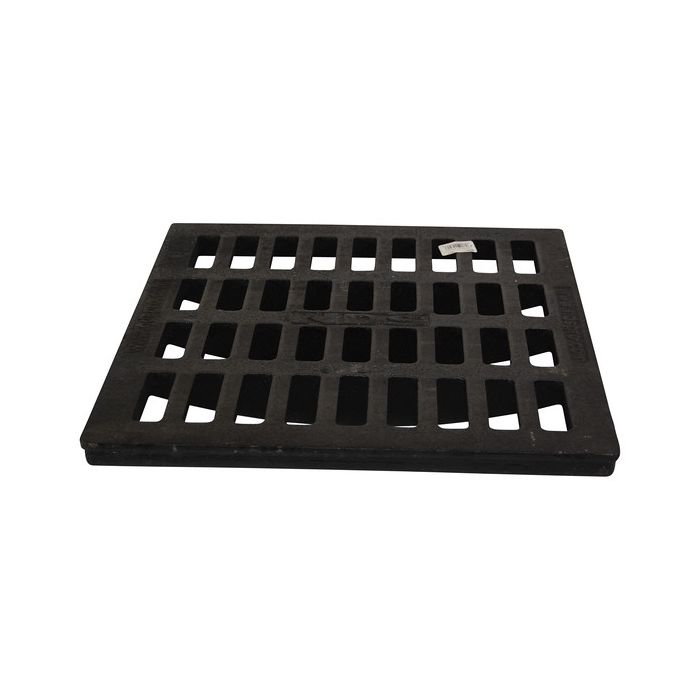

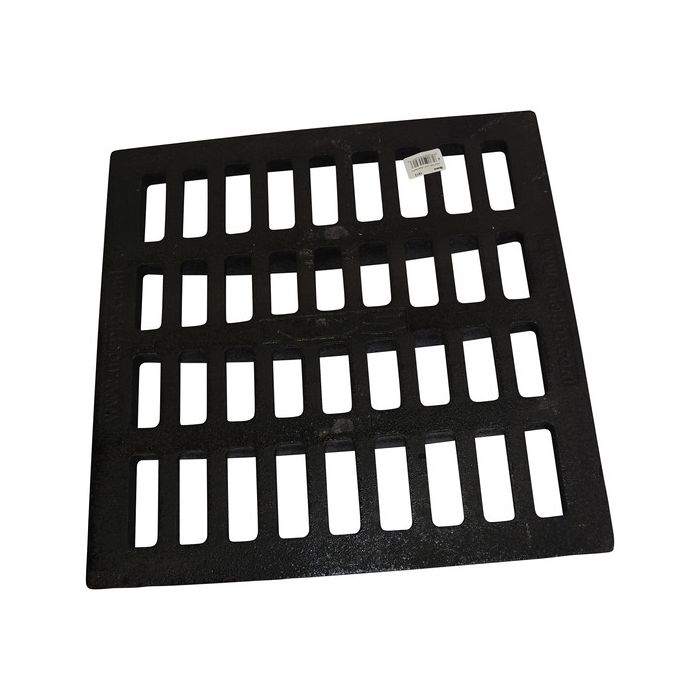

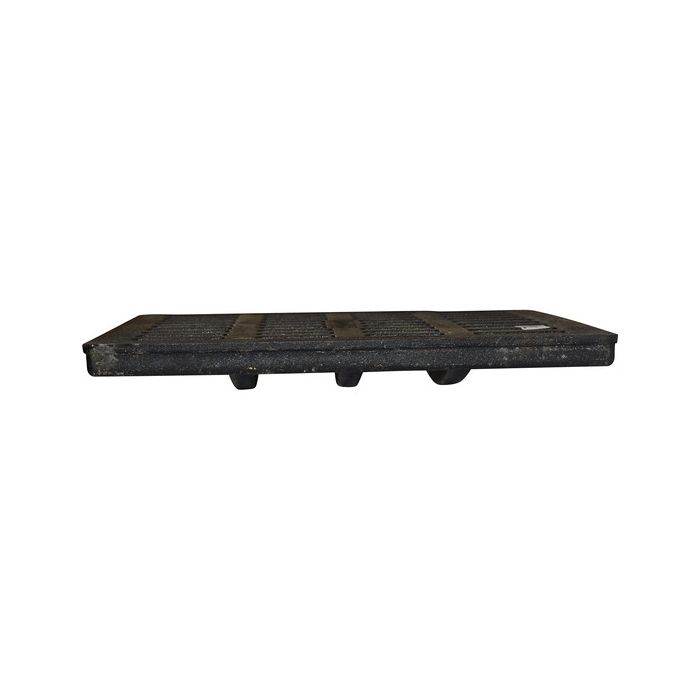

NDS 18" Square Catch Basin Grate - Cast Iron

$286.65
In stock
SKU
1813

For personalized assistance or a customized quote, be sure to call us directly at (803)-324-3225. Our team of experts is on standby to assist you with any questions you may have about our products.

Product Details: NDS 18" Square Catch Basin Grate - Cast Iron

The NDS 18" Square Catch Basin Grate - Cast Iron is vital to the NDS drainage system. This product is designed to effectively manage excess surface water from lawns, landscapes, residential driveways, and garages. Made to withstand regular use in landscaping and hardscaping projects, this kit is durable and built to last. The NDS 18" Square Catch Basin Grate - Cast Iron helps prevent the clogging of pipelines by collecting debris and other particles, ensuring the proper flow of water. Grates are customizable, with various patterns and colors to choose from, allowing for seamless integration into your surroundings. Whether you're looking to manage water buildup in common areas or divert water away from structures, erosion-prone landscapes, or areas with poor drainage, the NDS 18" Square Catch Basin Grate - Cast Iron has you covered.

Key Insights

  • Open Surface Area: 100.63 Sq. Inches
  • Dimensions: 16-7/8" LENGTH x 16-7/8" WIDTH x 1" HEIGHT
  • Load Recommendation: Class C (176-325 PSI / 56,200 lbs per foot)
  • Material: Cast Iron
  • H-20 Rated
  • Suitable for heavy-duty tire traffic when properly installed
  • Grate Opening: 1” x 3”
  • Use with NDS 18" Catch Basin products (#1882, #1884, #1800, #1804, #1816, #1830 and #1840)
  • Used for capturing and redirecting excess water to safe locations
  • Will accommodate: 731.13 gallons per minute with 1/2” of head

Shop Our Entire Line Of Catch Basin Products

Additional Information

NDS Catch Basin Flow Capacities
NDS 18" Catch Basin Technical Specifications
NDS 18" Catch Basin Plastic Grate Technical Specifications
NDS 18" Catch Basin Riser Technical Specifications
NDS 18" Catch Basin Galvanized Steel Grate Technical Specifications
NDS 18" Catch Basin Iron Grate Technical Specifications
Principles Of Exterior NDS Drainage
NDS Universal Adapters Technical Specifications
NDS Universal Adapters Compability Table

Product Installation Instructions

NDS 18" Catch Basin Plumbing Connections Installation Guide
NNDS 18" Catch Basin Landscape Application Installation Guide
NDS 18" Catch Basin Pedestrian and Light Vehicular Traffic Application Load Class A and B Installation Guide
NDS 18" Catch Basin Vehicular Traffic Application Load Class C Installation Guide
NDS 18" Catch Basin with Riser Landscape Application Installation Guide

Technical Product Drawings (DWG)

NDS 18" Catch Basin Plumbing Connections Installation Guide
NNDS 18" Catch Basin Landscape Application Installation Guide
NDS 18" Catch Basin Pedestrian and Light Vehicular Traffic Application Load Class A and B Installation Guide
NDS 18" Catch Basin Vehicular Traffic Application Load Class C Installation Guide
NDS 18" Catch Basin with Riser Landscape Application Installation Guide
