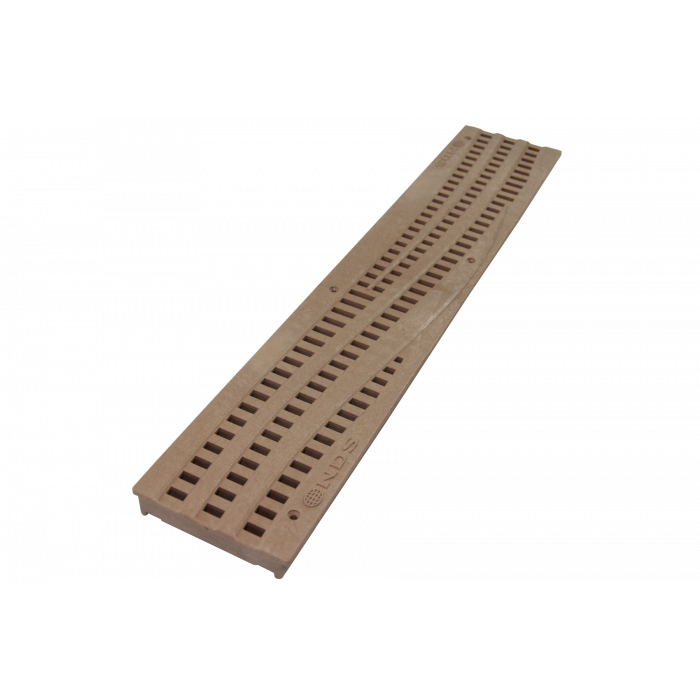

NDS Spee-D Channel Grate - Decorative Wave - Sand

Product Details: NDS Spee-D Channel Grate - Decorative Wave

The NDS Spee-D Channel system is a lightweight, easy-to-install alternative to traditional concrete drainage channels. It features a larger surface area for drainage and is suitable for both residential and non-residential applications such as swimming pools, patios, and light vehicular traffic areas. The NDS Spee-D Channel Grate - Decorative Wave comes in four colors: Black (#253), Gray (#253GY), Green (#253GR), and Sand (#253S). With its versatility, it can handle a range of applications including patios and light vehicular traffic areas. Made from chemical-resistant and rustproof materials, the maintenance-free and lightweight grates are a breeze to install, making the Spee-D Channel Drain an efficient and effective solution for your drainage needs. Call in directly for a personalized quote today!

Quick Look

• Install with Four FH #8 x 1" screws, per grate (Sold Separately)
• ADA Compliant
• Colors: Black (#253), Gray (#253GY), Green (#253GR), Sand (#253S)

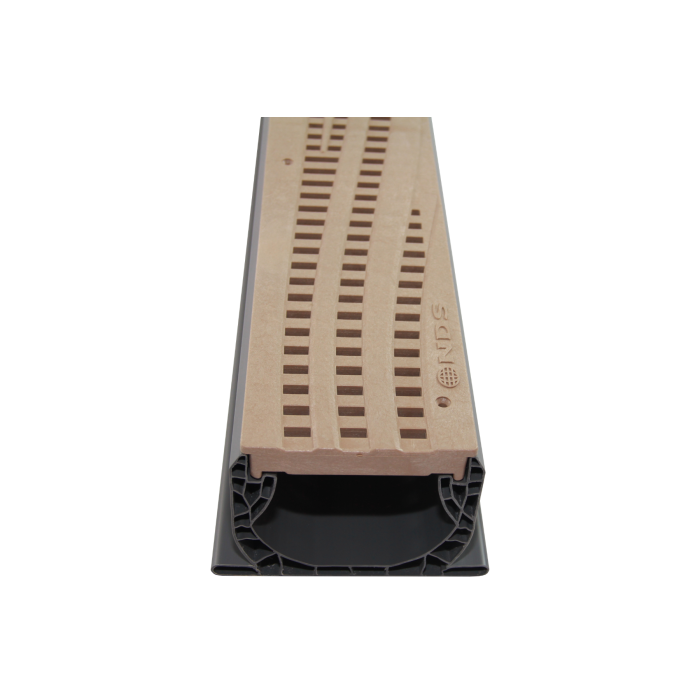

• Fits: NDS Spee-D Channel Drains #400 (4-Foot Section), #400-10 (10-Foot Section)
• Dimensions: 24" LENGTH x 4.420" WIDTH x 3/4" Height
• Will accommodate 47.60 gallons per minute 1/2" of head
• Load Recommendation: Class B (61-175 PSI / 28,100 lbs per foot)
• UV Inhibitors
• Material: UV Protected High-Density Polyethylene (HDPE)

Additional Information

Product Installation Instructions

Technical Product Drawings (DWG)
