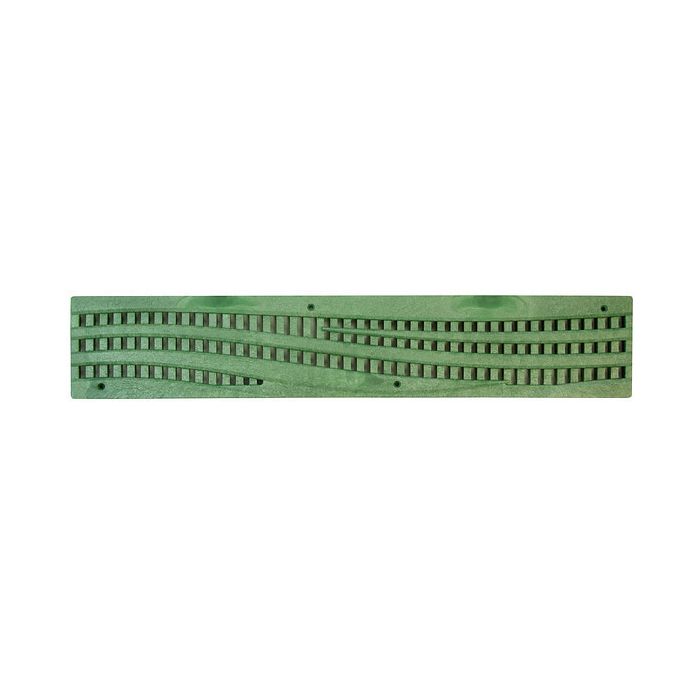

NDS Spee-D Channel Grate - Decorative Wave - Green

$32.66
In stock
SKU
253GR

For personalized assistance or a customized quote, be sure to call us directly at (803)-324-3225. Our team of experts is on standby to assist you with any questions you may have about our products.

Product Details: NDS Spee-D Channel Grate - Decorative Wave

The NDS Spee-D Channel system is a lightweight, easy-to-install alternative to traditional concrete drainage channels. It features a larger surface area for drainage and is suitable for both residential and non-residential applications such as swimming pools, patios, and light vehicular traffic areas. The NDS Spee-D Channel Grate - Decorative Wave comes in four colors: Black (#253), Gray (#253GY), Green (#253GR), and Sand (#253S). With its versatility, it can handle a range of applications including patios and light vehicular traffic areas. Made from chemical-resistant and rustproof materials, the maintenance-free and lightweight grates are a breeze to install, making the Spee-D Channel Drain an efficient and effective solution for your drainage needs. Call in directly for a personalized quote today!

Quick Look

  • Install with Four FH #8 x 1" screws, per grate (Sold Separately)
  • ADA Compliant
  • Colors: Black (#253), Gray (#253GY), Green (#253GR), Sand (#253S)
  • Fits: NDS Spee-D Channel Drains #400 (4-Foot Section), #400-10 (10-Foot Section)
  • Dimensions: 24" LENGTH x 4.420" WIDTH x 3/4" Height
  • Will accommodate 47.60 gallons per minute 1/2" of head
  • Load Recommendation: Class B (61-175 PSI / 28,100 lbs per foot)
  • UV Inhibitors
  • Material: UV Protected High-Density Polyethylene (HDPE)

Shop our entire line of NDS Spee-D Drainage Products
NDS Spee-D FAQS

Additional Information

NDS Spee-D Channel Decorative Wave Grate Technical Specifications
NDS Spee-D Channel Botanical Grate Technical Specifications
NDS Spee-D Channel Drain Technical Specifications
NDS Spee-D Channel Grate Technical Specifications
NDS Spee-D Drainage Accessories Technical Specifications
How To Install NDS Spee-D Channel Drain or NDS Mini Channel Drainage System
NDS Channel Grates Flow Capacities Table
Principles Of Exterior NDS Drainage
NDS Spee-D Channel Drain Technical Specifications
NDS Spee-D Drainage Accessories Technical Specifications
Improving Your Drainage System With The NDS Spee-D Channel Video
How Do I Choose The Right Channel Drain For My Drainage System? Video
Improving A Drainage System With The NDS Spee-D Drainage System Video

Product Installation Instructions

NDS Spee-D Channel Drain Light Vehicular Traffic Installation - Pavers Instructions
NDS Spee-D Channel Drain Bottom Outlet Installation Instructions
NDS Spee-D Channel Drain Bottom Outlet Style 2 Installation Instructions
NDS Spee-D Channel Drain End Outlet Installation Instructions
NDS Spee-D Channel Drain End Outlet Style 2 Installation Instructions
NDS Spee-D Channel Drain Landscape Traffic Installation Instructions
NDS Spee-D Channel Drain Light Vehicular Traffic Installation Instructions
NDS Spee-D Channel Drain Pedestrian Traffic Installation Instructions
NDS Channel Drain Installation Guide

Technical Product Drawings (DWG)

NDS Spee-D Channel Drain Bottom Outlet Installation Instructions
NDS Spee-D Channel Drain Bottom Outlet Style 2 Installation Instructions
NDS Spee-D Channel Drain End Outlet Installation Instructions
NDS Spee-D Channel Drain End Outlet Style 2 Installation Instructions
NDS Spee-D Channel Drain Landscape Traffic Installation Instructions
NDS Spee-D Channel Drain Light Vehicular Traffic Installation Instructions
NDS Spee-D Channel Drain Pedestrian Traffic Installation Instructions
