NDS Spee-D Channel Grate - Black

$22.65
In stock
SKU
243

For personalized assistance or a customized quote, be sure to call us directly at (803)-324-3225. Our team of experts is on standby to assist you with any questions you may have about our products.

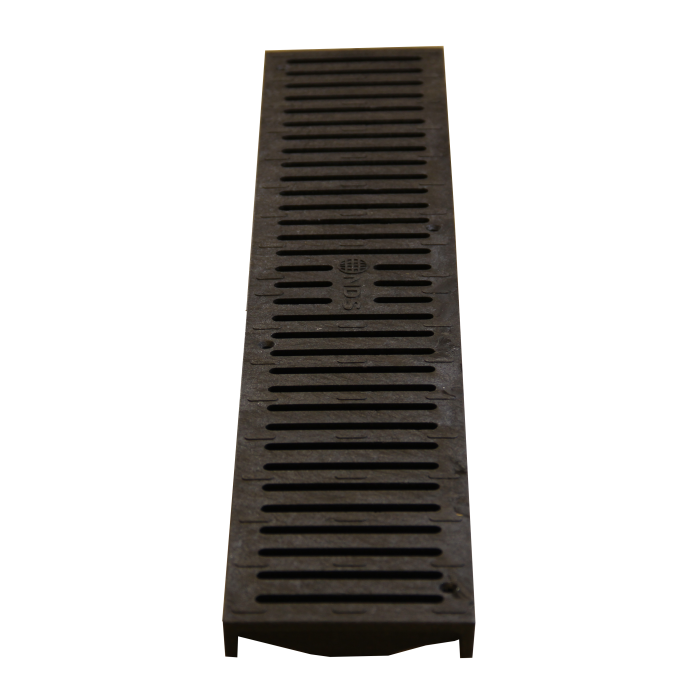

Product Details: NDS Spee-D Channel Grate

The NDS Spee-D Channel system is a lightweight, easy-to-install alternative to traditional concrete drainage channels. It features a larger surface area for drainage and is suitable for both residential and non-residential applications such as swimming pools, patios, and light vehicular traffic areas. The NDS Spee-D Channel Grate comes in six colors: White (#240), Gray (#241), Green (#242), Black (#243), Sand (#244), and Brick Red (#251). With its versatility, it can handle a range of applications including patios and light vehicular traffic areas. Made from chemical-resistant and rustproof materials, the maintenance-free and lightweight grates are a breeze to install, making the Spee-D Channel Drain an efficient and effective solution for your drainage needs. Call in directly for a personalized quote today!

Quick Look

  • Install with Four FH #8 x 1" screws, per grate (Sold Separately)
  • ADA Compliant
  • Colors: White (#240), Gray (#241), Green (#242), Black (#243), Sand (#244), and Brick Red (#251)
  • Fits: NDS Spee-D Channel Drains #400 (4-Foot Section), #400-10 (10-Foot Section)
  • Grate Opening: 3/8” x 3-1/4”
  • Dimensions: 24" LENGTH x 4-1/8" WIDTH x 3/4" Height
  • Open Surface Area: 16.92 Sq. Inch per Ft.
  • Load Recommendation: Class B (61-175 PSI / 28,100 lbs per foot)
  • UV Inhibitors
  • Material: UV Protected High-Density Polyethylene (HDPE)
