NDS 6' Slim Channel Drain

Product Details: NDS 6' Slim Channel Drain

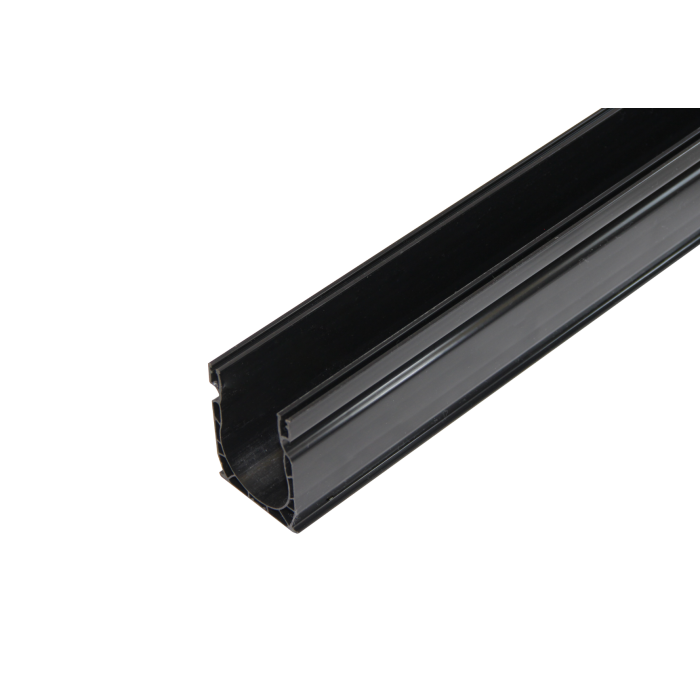

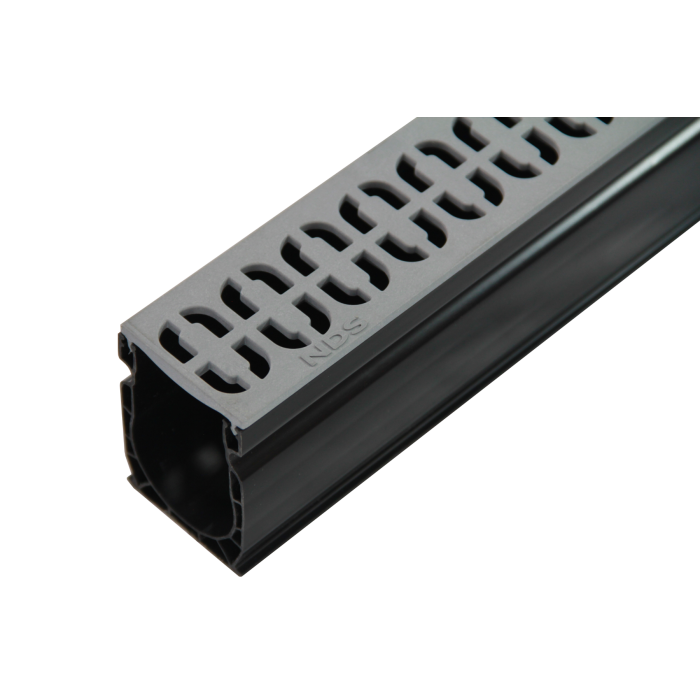

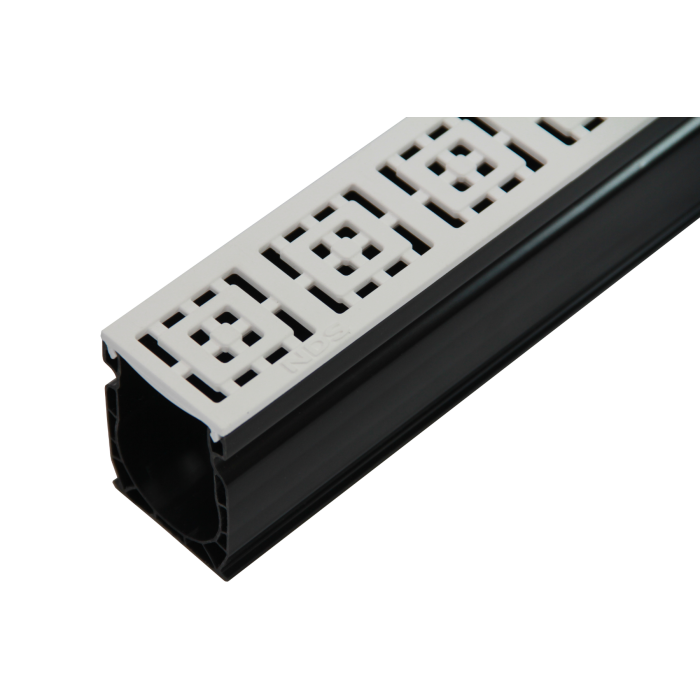

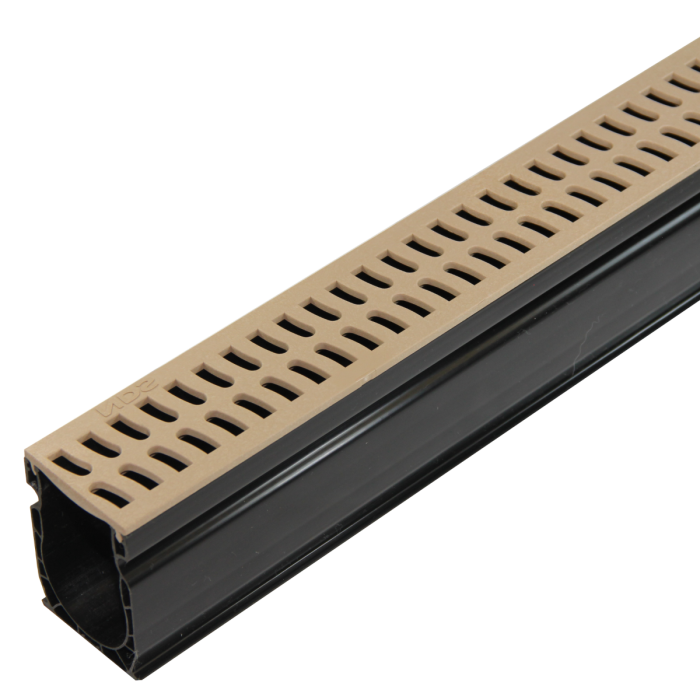

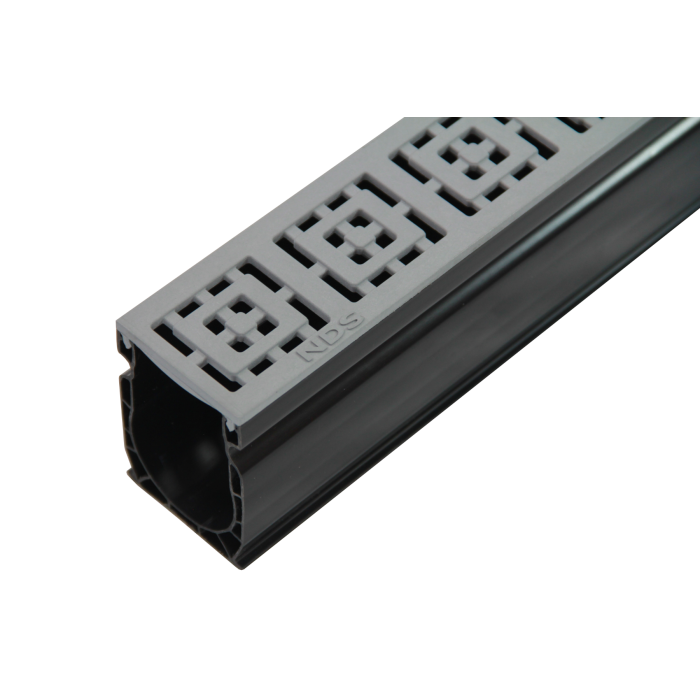

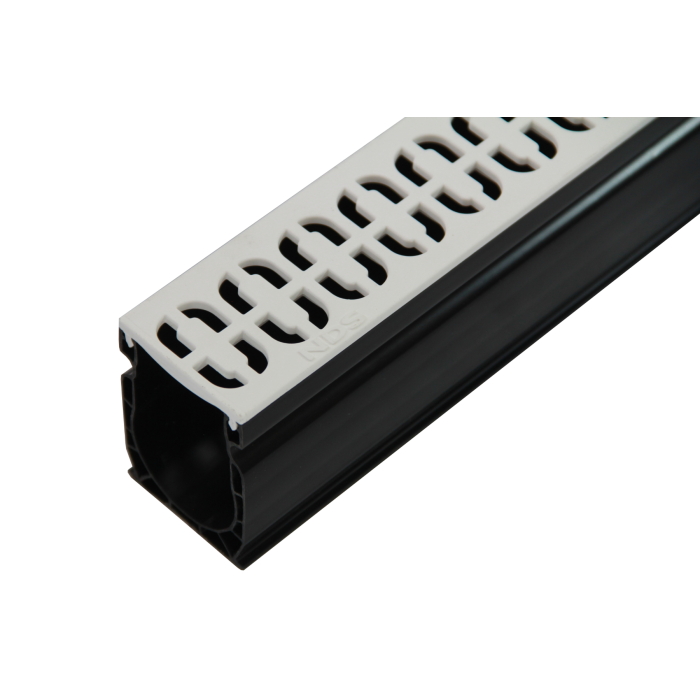

Discover the latest channel drain product from NDS - the Slim Channel drainage series. Combining the best features of the Micro and Mini Channel series, the NDS 6' Slim Channel Drain boasts a sleek design with a reduced flying buttress and Micro Channel-inspired internal couplings. Choose from a wide selection of grating options to match your hardscape and enjoy a hassle-free installation with compatibility with Schedule 40 PVC pipe and fittings.

Key Insights

• Use With NDS Slim Channel Accessories
• Call In Directly for our NDS 9 FT Slim Channel Drain Pricing

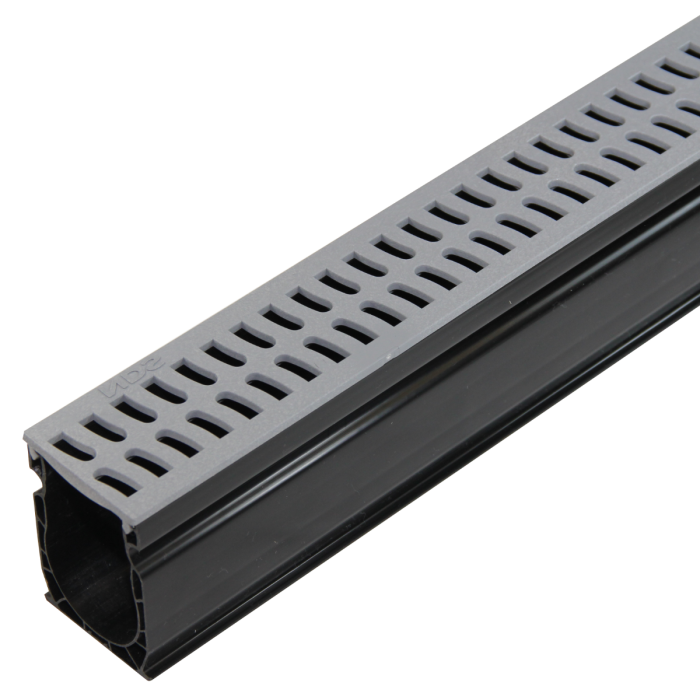

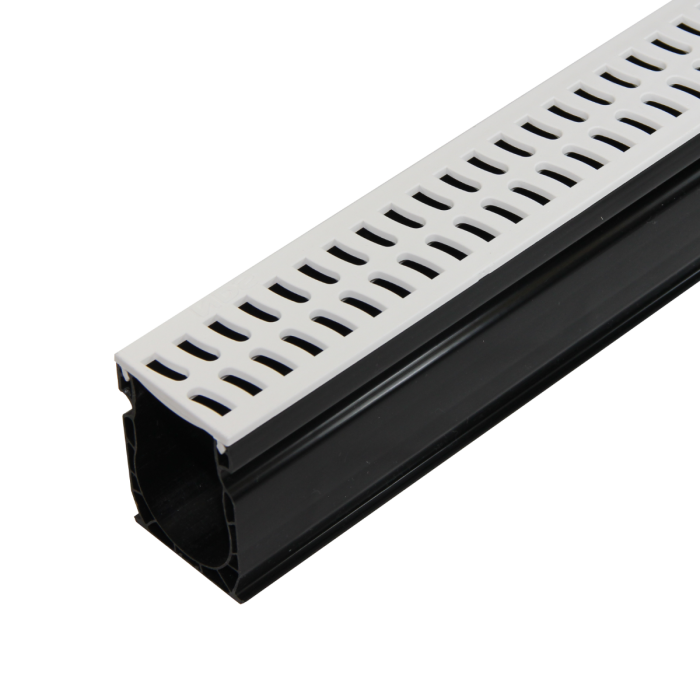

• Snap-in channel grates are removable, making it easy to clean debris from the inside channel for maintenance

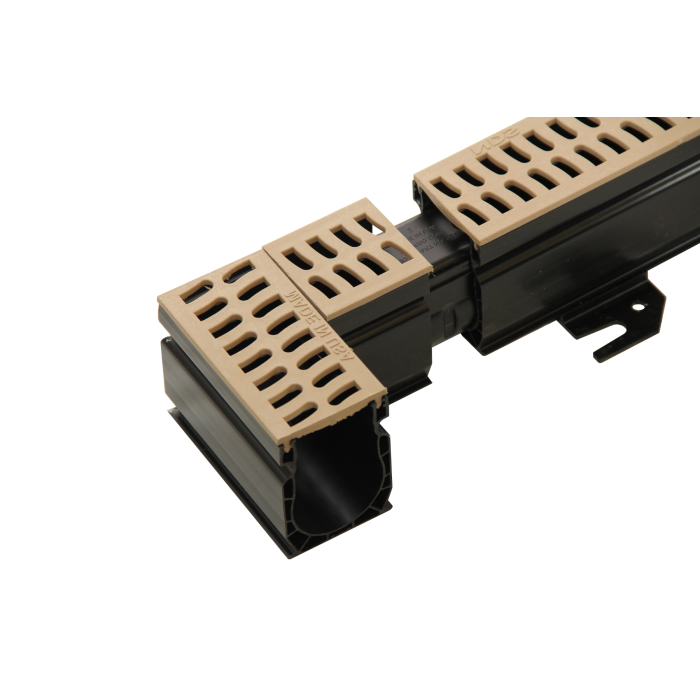

• NDS Slim Channel Couplings (#9248) are required for installation, Sold Separately

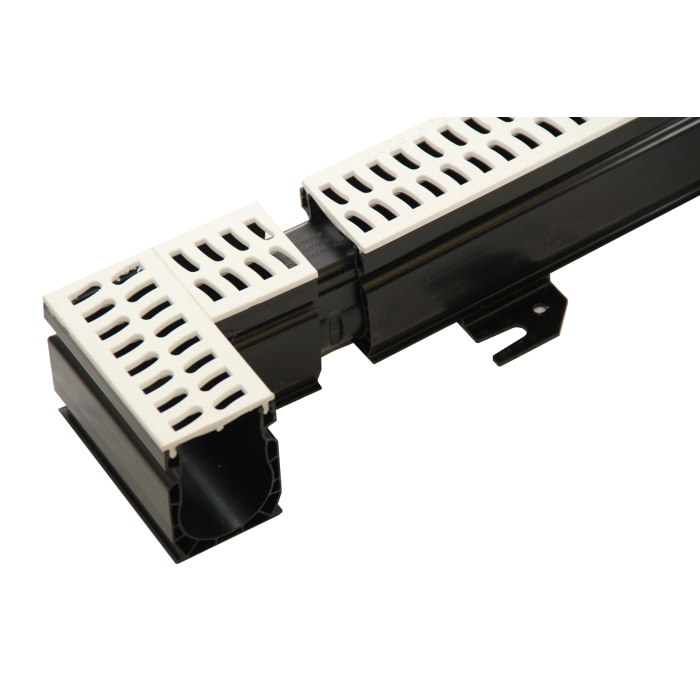

• The Slim Channel Drains connect securely with internal couplings, and the bottom outlet and end caps with knockout outlets can be attached to 1-1/2" Schedule 40 PVC pipes

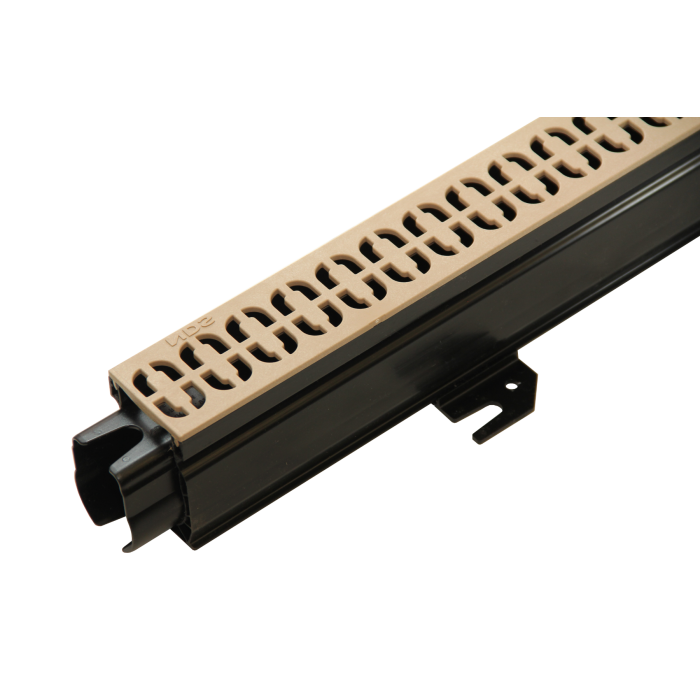

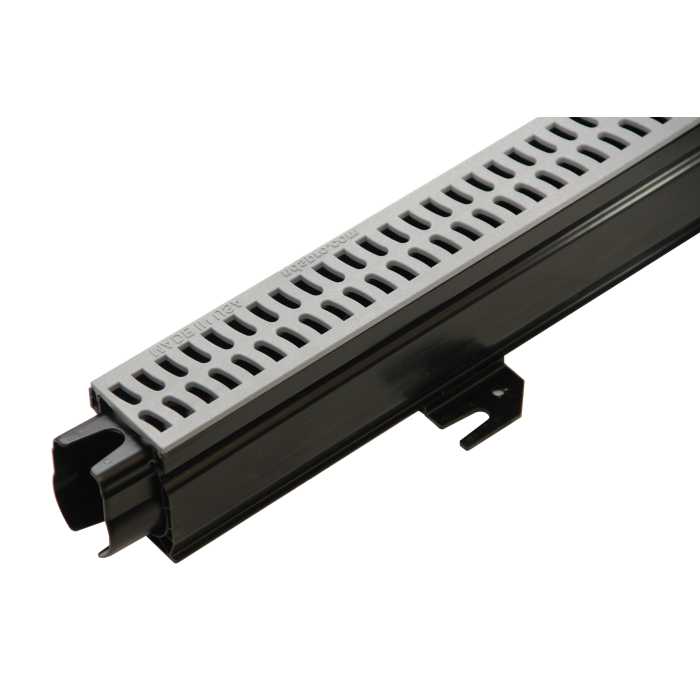

• Secure a watertight connection with PVC glue between the outlet and pipe or between channels. Easy installation is made possible with anchor clips that attach the channel to the base.
• Dimensions: The NDS Slim Channel Drains measure 2-1/4 inches wide, 3 inches in height, and 6 feet in length. Lengths can be easily customized with a saw
• ADA Compliant
• Load Recommendation: Class A (00-65 PSI / 3,372 lbs per foot)
• Material: UV Protected High-Density Polyethylene (HDPE)

Shop our entire line of NDS Slim Channel Products

Additional Information

Product Installation Instructions

Technical Product Drawings (DWG)
