NDS 3" Pop-Up Drainage Emitter With Elbow
For personalized assistance or a customized quote, be sure to call us directly at (803)-324-3225. Our team of experts is on standby to assist you with any questions you may have about our products.
Product Details: NDS 3" Pop-Up Drainage Emitter With Elbow

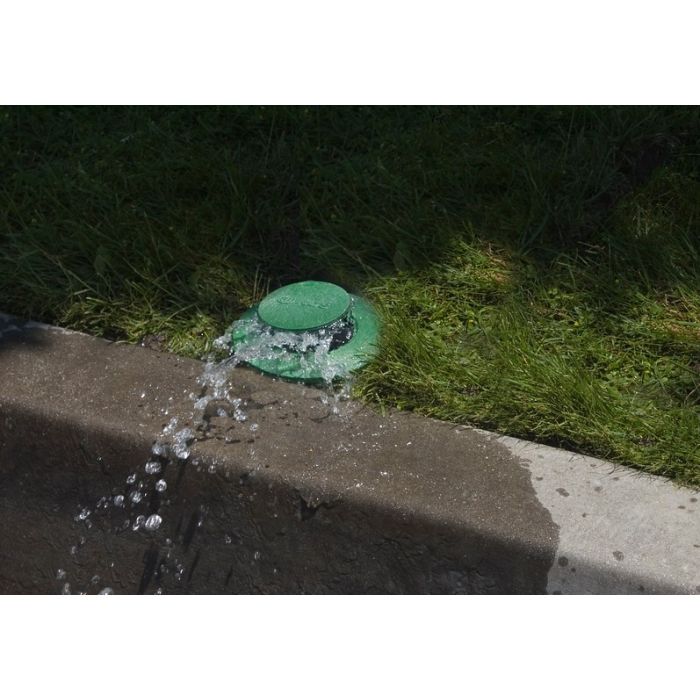

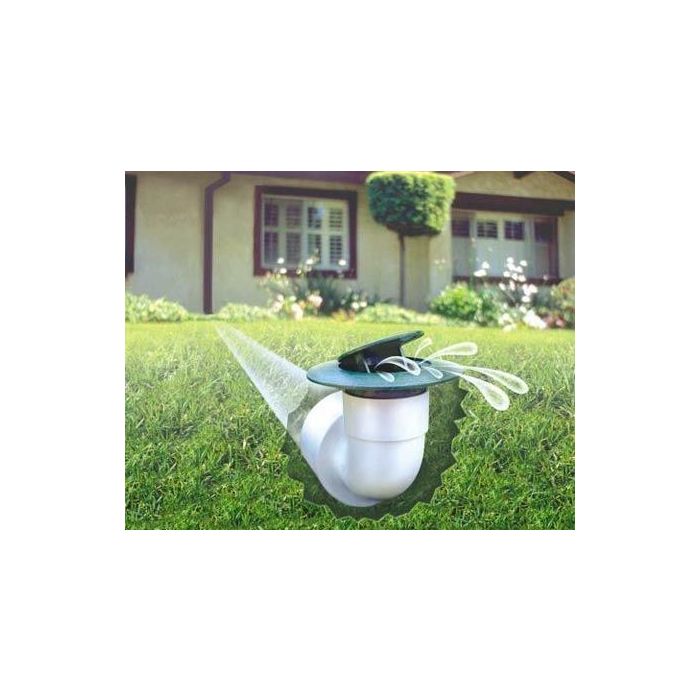

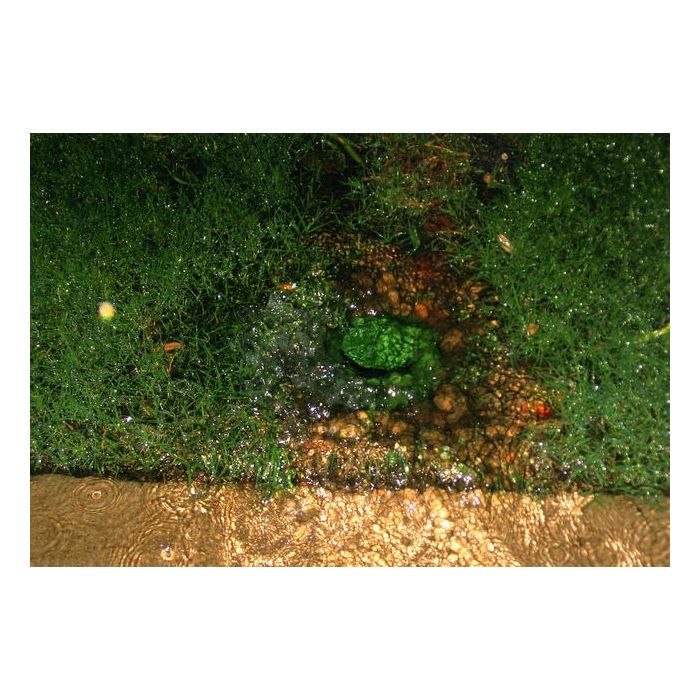

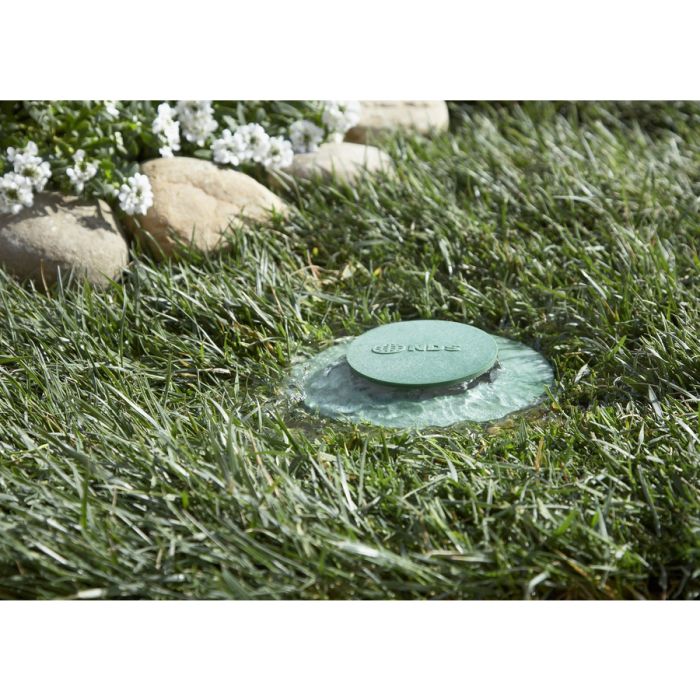

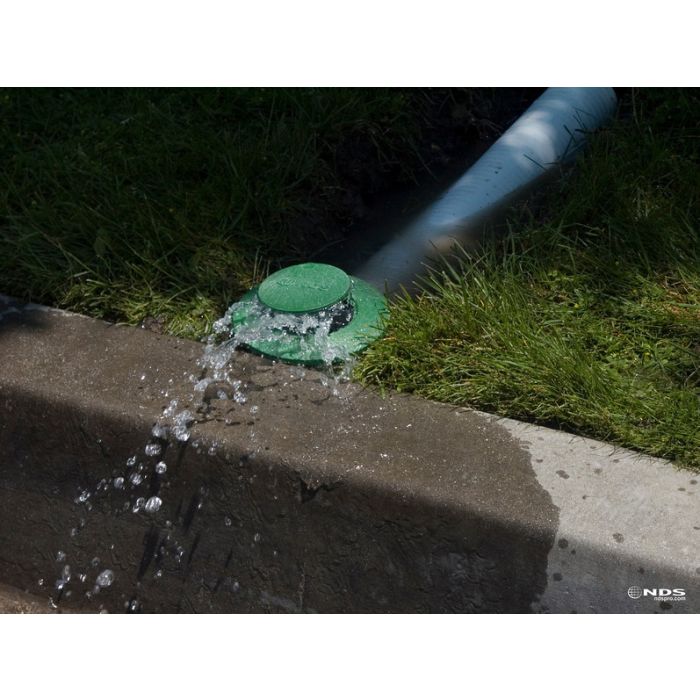

The NDS drainage system features an NDS 3" Pop-Up Drainage Emitter With Elbow designed to serve as the discharge point for any drainage system including with 3" sewer and drain pipe. The patented spring-loaded cap of the NDS pop-up drainage emitter opens effortlessly with hydrostatic pressure, allowing water to flow freely from the pipe and away from structural foundations, erosion-prone landscapes, and poor drainage areas. Whether you need to manage water flow or protect structures from water damage, the NDS 3" Pop-Up Drainage Emitter With Elbow provides a reliable and effective way to do so. With automatic closure when water flow decreases, the system stays clear and functional, while ensuring debris stays out of the pipe. Be sure to call in directly for personal assistance or a quote.
Key Insights
- Material: UV Protected High-Density Polyethylene (HDPE)
- Fits: 3" (inch) sewer and drain pipe
- Will accommodate 40 gallons per minute
- Recommended for pedestrian traffic

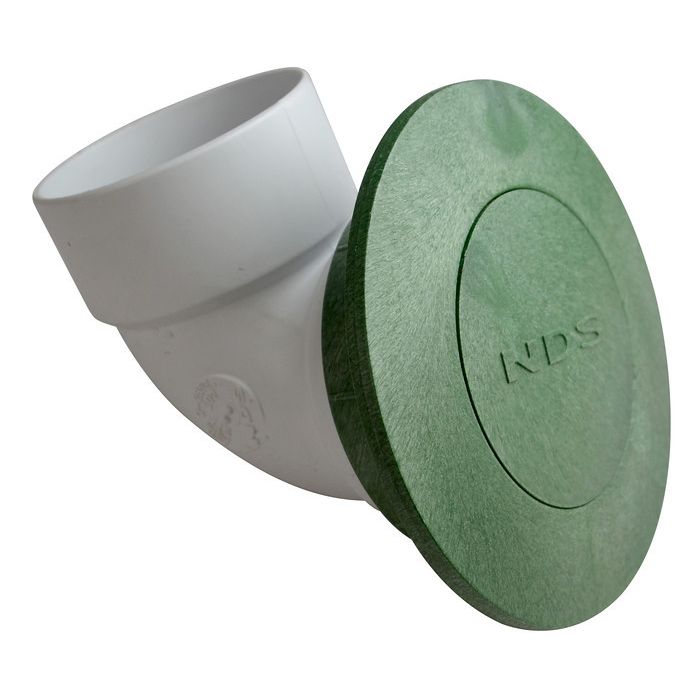

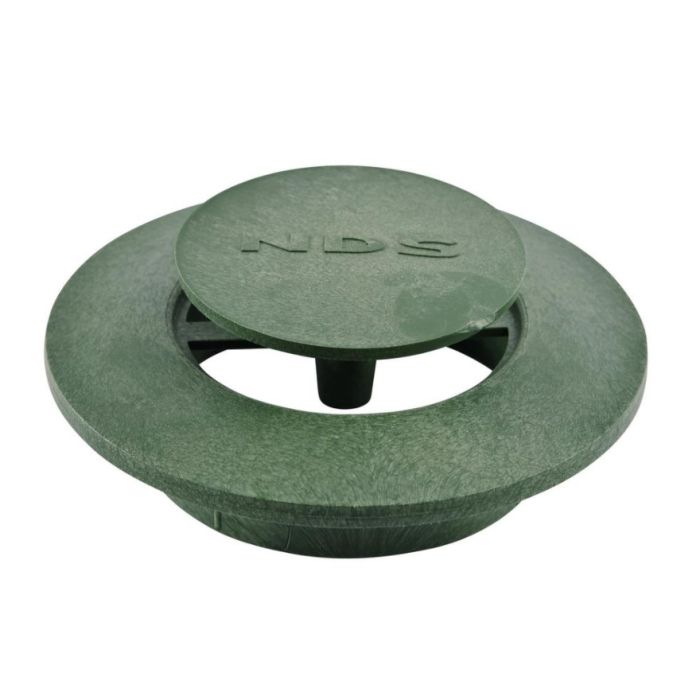

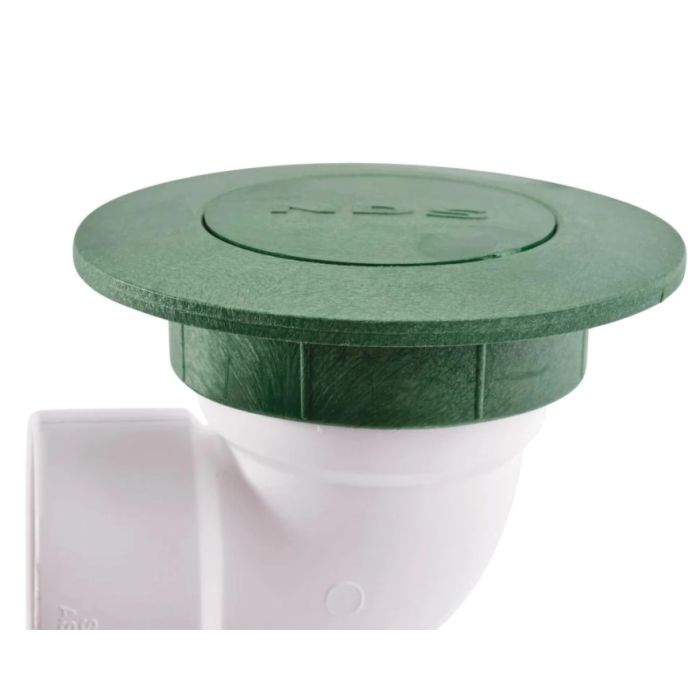

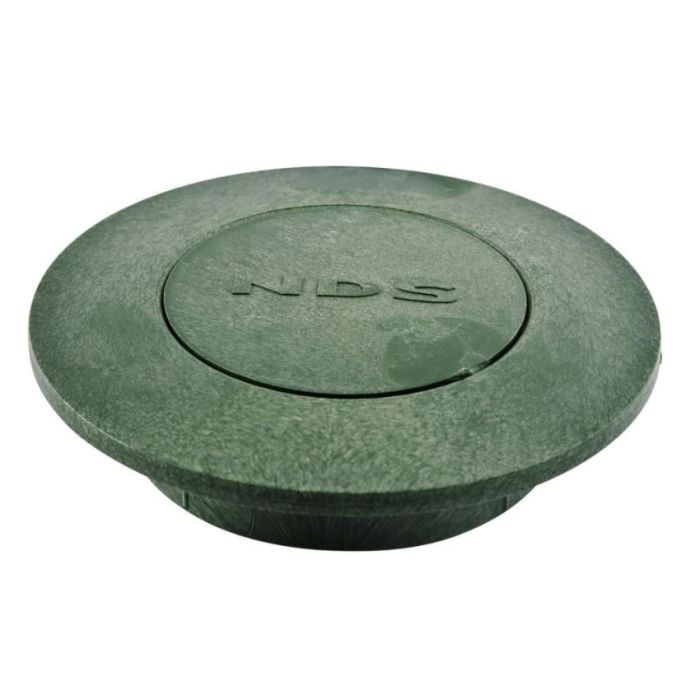

- Includes ONE NDS 3" & 4" Pop-up Drainage Emitter #420 and ONE 90-Degree Styrene angle attached (3")
- Load Recommendation: Class A (01-60 PSI / 3,800 lbs per foot)
- Eligible to be used with NDS FLO-WELL to relieve overflow
- Spring Tension: 0.04 PSI or 1” water required to rise cap

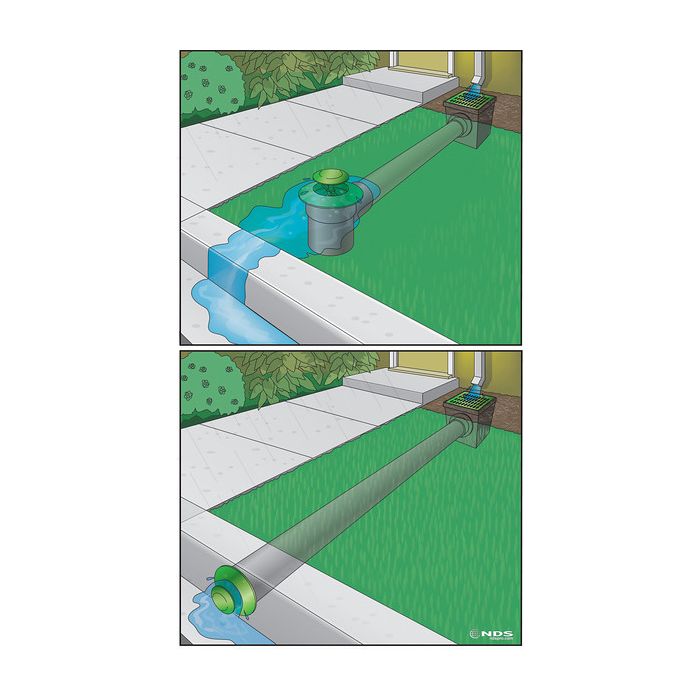

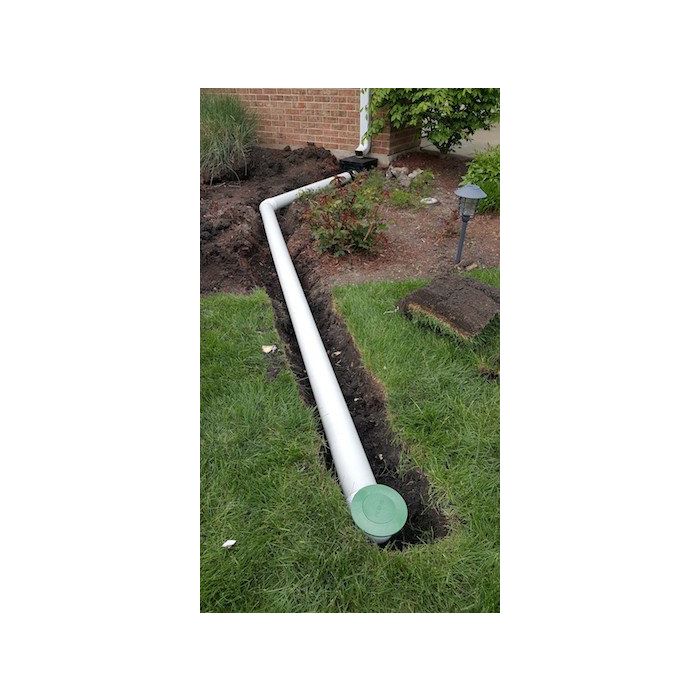

- Used to facilitate the flow of water from catch basins, channel drains, flow-wells, downspouts, and roof gutter systems
Shop our entire line of Pop-Up Emitters Products
Additional Information
NDS 3" Pop-Up Drainage Emitter With Elbow Technical SpecificationsNDS Channel Grates Flow Capacities Table
Principles Of Exterior NDS Drainage
Product Installation Instructions

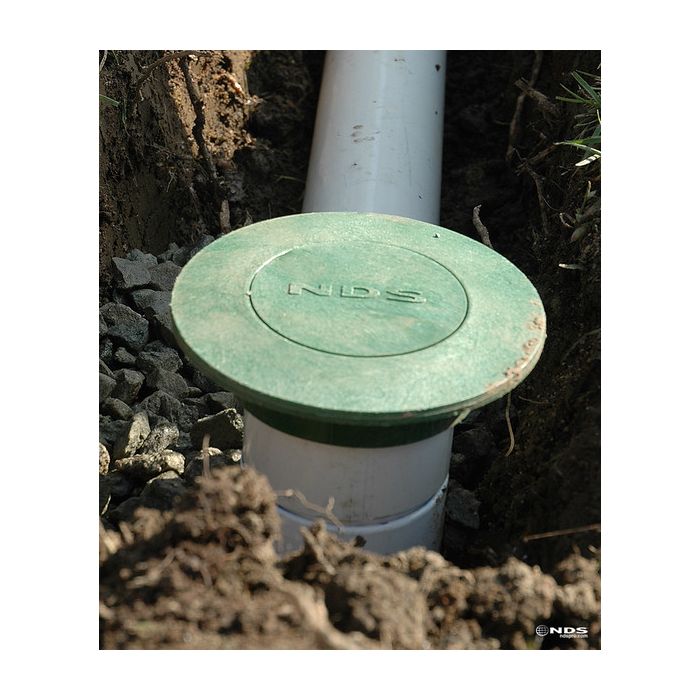

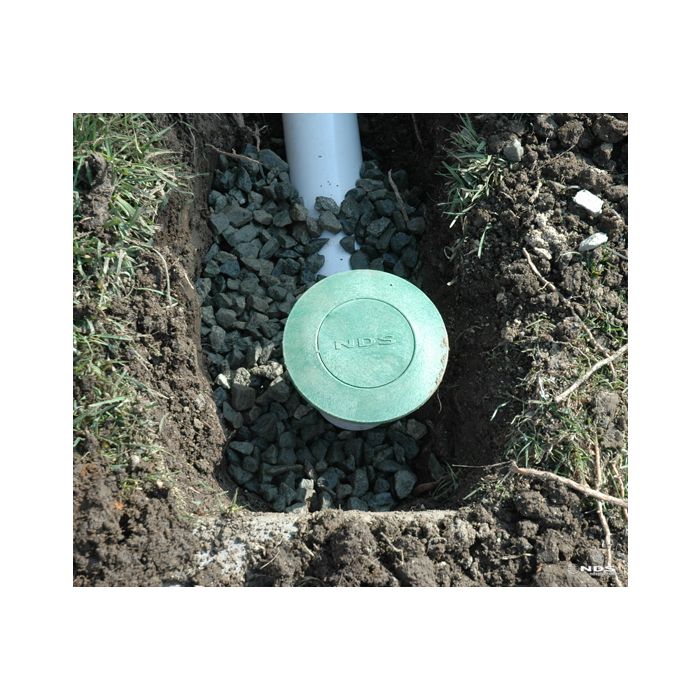

Pop-Up Emitter At Corrugated Pipe Installation GuidePop-Up Emitter At Hard Pipe Installation Guide
Pop-Up Emitter At Spee-D Basin Installation Guide
Technical Product Drawings (DWG)
Pop-Up Emitter At Corrugated Pipe Installation GuidePop-Up Emitter At Hard Pipe Installation Guide
Pop-Up Emitter At Spee-D Basin Installation Guide
