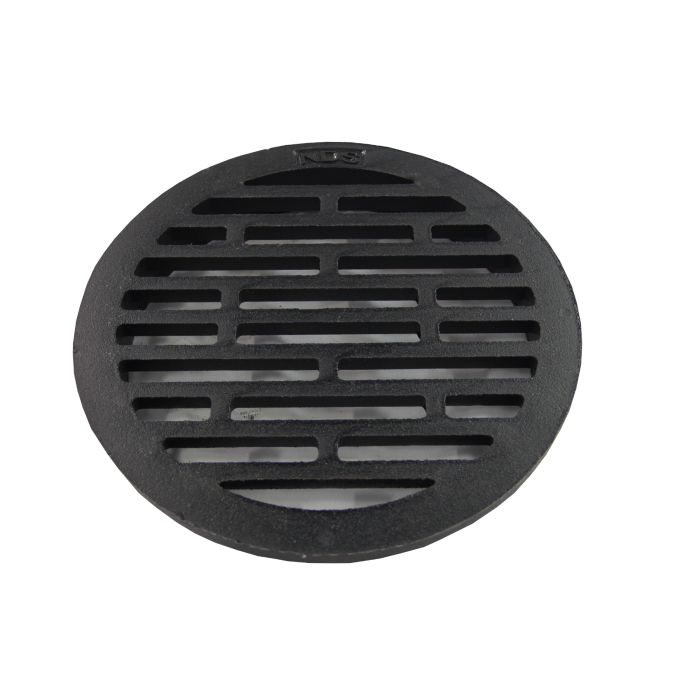

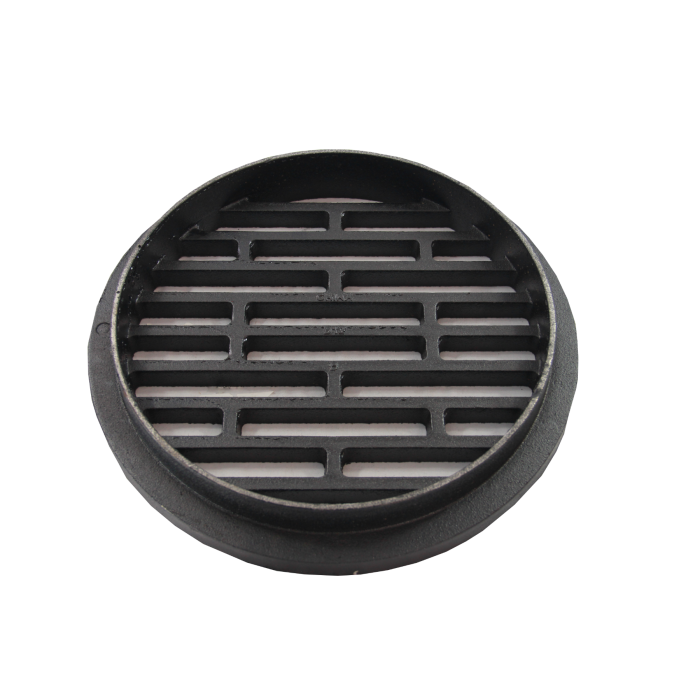

NDS 12" Round In-line Grate, Ductile Iron
For personalized assistance or a customized quote, be sure to call us directly at (803)-324-3225. Our team of experts is on standby to assist you with any questions you may have about our products.
Product Details: NDS 12" Round In-line Grate, Ductile Iron
The NDS 12" Round In-line Grate, Ductile Iron is a heavy-duty ductile iron round grate that is specifically designed for stormwater drainage systems. With its impressive load-bearing capacity, this grate is capable of handling loads ranging from 326 to 575 psi, while also meeting H-20 load rating standards. The 12" Round In-line Grate, Ductile Iron are an excellent choice for areas with high traffic or heavy loads. NDS 12" Round In-line Grate, Ductile Iron is designed to fit 12" corrugated sewer and drain pipe. Ductile iron is equipped with a superior strength-to-weight ratio and improved resistance to corrosion. Don't hesitate to call in directly to speak to an expert if you wish for personal assistance.
Key Insights
- ADA Compliant
- UV Inhibitors
- Material: Ductile Iron
- Fits: 12” Corrugated and Sewer and Drain pipe
- Load Recommendation: Class D (326-575 PSI / 89,920 lbs per foot)
- Opening: 55.16 inches sq. open space
- H-20 Rated
- Will accommodate 168.74 gallons per minute with 1/2” of head
